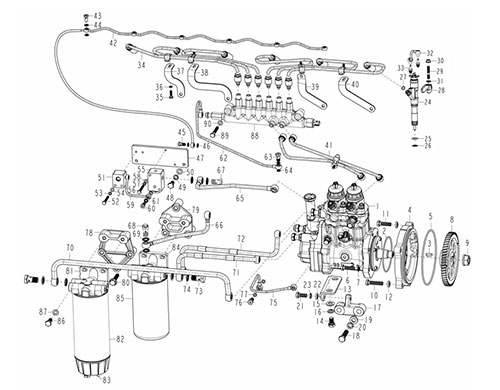

| NO. | Part No. | Chinese Name | Part name |
| 1 | VG1246080050 | 喷油泵总成 | Fuel injection pump |
| 2 | VG1246080028 | O型密封圈 | O-ring |
| 3 | R61540080312 | 半圆键 | Woodruff key |
| 4 | VG1246080056 | 油泵安装法兰 | Flange |
| 5 | VG1246080027 | O型密封圈 | O-ring |
| 6 | Q150B1035TF2 | 六角头螺栓 | Hex head bolt |
| 7 | Q40110 | 平垫圈 | Washer |
| 8 | VG1246080029 | 油泵驱动齿轮 | Fuel injection pump gear |
| 9 | VG1246130010 | 六角螺母 | Hexagon nut |
| 10 | Q150B1045TF2 | 六角头螺栓 | Hex head bolt |
| 11 | Q150B1035TF2 | 六角头螺栓 | Hex head bolt |
| 12 | VG1246080042 | 厚垫片(4mm) | Washer |
| 13 | VG1246080054 | 油泵辅助支架 | Bracket |
| 14 | Q150B1220 | 六角头螺栓 | Hex head bolt |
| 15 | Q40112 | 平垫圈 | Washer |
| 16 | Q40312 | 弹簧垫圈 | Spring washer |
| 17 | VG1246080055 | 油泵辅助托架 | Bracket |
| 18 | Q150B1250 | 六角头螺栓 | Hex head bolt |
| 19 | VG1246080044 | 厚垫片 | Washer |
| 20 | Q40312 | 弹簧垫圈 | Spring washer |
| 21 | Q150B1025 | 六角头螺栓 | Hex head bolt |
| 22 | VG1246080042 | 厚垫片(4mm) | Washer |
| 23 | Q40310 | 弹簧垫圈 | Spring washer |
| 24 | VG1246080051 | 喷油器总成 | Fuel injector |
| 25 | VG1540080018A | 喷油器密封圈 | O-ring |
| 26 | VG1540080019B | 喷油器垫圈 | Washer |
| 27 | VG1540080095 | 密封圈 | O-ring |
| 28 | VG1246080039 | 喷油器压板 | Fuel injector clamp |
| 29 | VG1099040030 | 双头螺柱 | Hex head bolt |
| 30 | VG1099040010 | 六角法兰面螺母 | Nut |
| 31 | VG1540080024 | 球面垫圈 | Spherical washer |
| 32 | VG1099089065 | 喷油器回油短管 | Fuel return pipe |
| 33 | VG1099089064 | 接头 | Tie-in |
| 34 | VG1246080001 | 高压油管总成 | Injection pipe assembly |
| 35 | Q150B0620 | 六角头螺栓 | Hex head bolt |
| 36 | Q41806 | 波形弹性垫圈 | Spring washer |
| 37 | VG1246080066 | 支承架（一） | Bracket |
| 38 | VG1246080067 | 支承架（二） | Bracket |
| 39 | VG1246080068 | 支承架（三） | Bracket |
| 40 | VG1246080069 | 支承架（四） | Bracket |
| 41 | VG1246080070 | 高压油管组件 | Fuel injection pipe |
| 42 | VG1246080008 | 回油管总成 | Fuel return pipe assembly |
| 43 | VG1246080077 | 空心螺栓 | Hollow bolt |
| 44 | VG1540080200 | 密封垫圈 | Sealing washer |
| 45 | 190004000000 | 空心螺栓 | Hollow bolt |
| 46 | VG9003080002 | 复合密封垫圈 | Sealing washer |
| 47 | VG1540080070 | 固定板 | Mounting plate |
| 48 | Q150B1020 | 六角头螺栓 | Hex head bolt |
| 49 | Q40310 | 弹簧垫圈 | Spring washer |
| 50 | Q40110 | 平垫圈 | Washer |
| 51 | VG1540080067 | 燃油温度传感器座 | Fuel temp sensor bracket |
| 52 | Q150B0645 | 六角头螺栓 | Hex head bolt |
| 53 | Q40306 | 弹簧垫圈 | Spring washer |
