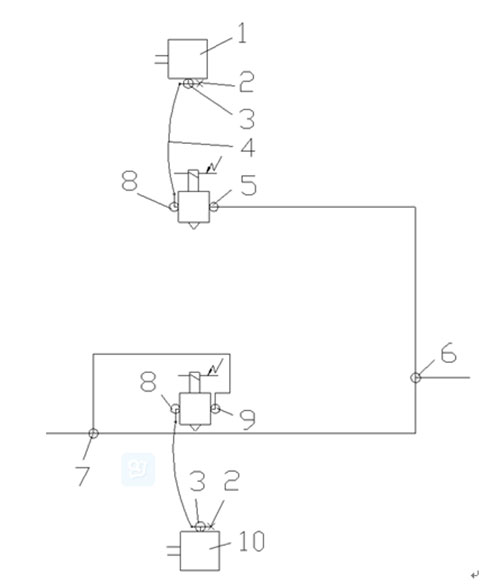

| no | PART NO | QUANTITY | PART NAME | 名 称 |
| 1 | WG9000360101 | 1 | 24 "diaphragm type brake chamber (right). | 24“膜片式制动气室（右） |
| 2 | WG9000361401 | 2 | Pressure test joint assembly | 压力测试接头总成 |
| 3 | WG9003559901 | 2 | Card sleeve tee joint body M18 / M22 / M12 | 卡套式三通接头体M18/M22/M12 |
| 4 | WG9725360451 | 2 | Brake hose assembly (670) | 制动软管总成（长670） |
| 5 | WG9000361101 | 1 | Through joint NG12 / NW9 | 直通接头体NG12/NW9 |
| 6 | WG9000361319 | 1 | T the tee joint body 2 - NW9 / NW6 | T型三通接头体2-NW9/NW6 |
| 7 | WG9000361310 | 1 | T 3 - NW9 tee joint body | T型三通接头体3-NW9 |
| 8 | WG9100362004 | 2 | Card sets of right Angle connector body | 卡套直角接头体 |
| 9 | WG9000361204 | 1 | NG12 / NW9 right Angle connector body | 直角接头体NG12/NW9 |
| 10 | WG9000360100 | 1 | 24 "diaphragm type brake chamber (left) | 24"膜片式制动气室(左） |
| 其他管路连接件Other pipe fittings | ||||
| WG9000361007 | 2 | Elastic element NG12 | 弹性元件NG12 | |
| WG9000361008 | 2 | Circlip NG12 | 卡簧NG12 | |
| WG9000361009 | 2 | Nut seat NG12 | 螺母座NG12 | |
| WG9000361015 | 4 | Hexagon thin nuts M22X1. 5 | 六角薄螺母M22X1.5 | |
| WG9000361016 | 4 | Support gasket M22X1. 5 | 支撑垫圈M22X1.5 | |
| WG9000361017 | 4 | 20.3 X2.4 o-rings | O型圈20.3X2.4 | |
