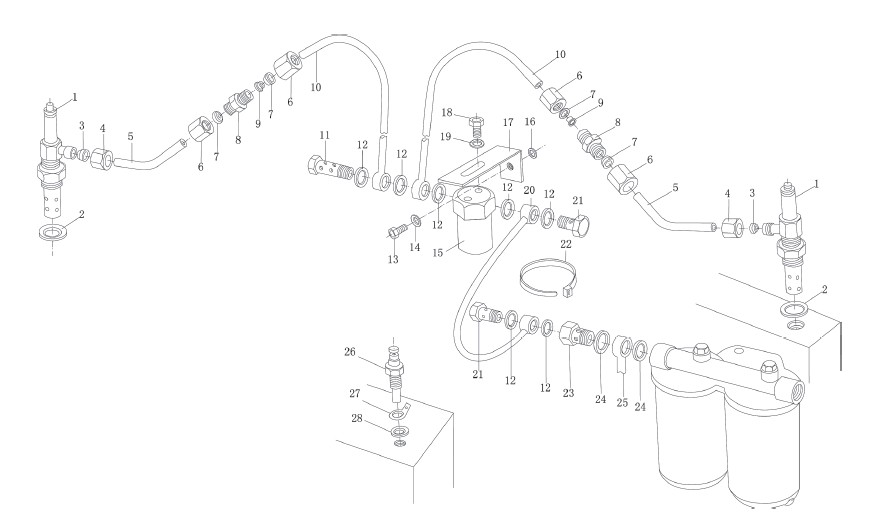

WD615 II SERIES
FLAMESTATRER SYSTEM

2015-11-26 23:07:36

 NO. Part No. Chinese Name Part Name
1 61200090162 火焰预热电热塞 Flamespark plug
2 90003098029 密封垫圈 Seal washer
3 90003059557 卡套 Clip
4 90003559506 联接螺母 Nut
5 81560080327 Pipe
6 90003559516 管接头用螺母 Nut
7 90003559561 卡套 Clip
8 90003559462 卡套式直接接头体 Connector
9 90014280016 衬套 Bush
10 AZ1500080154 燃油管总成 Fuel oil pipe
11 81560080212 空心螺栓 Bolt
12 90003098010 密封垫圈 Seal washer
13 90003802415 六角头螺栓 Bolt
14 90003932023 波形弹性垫圈 Spring washer
15 61200090163 电磁阀 Electromagnetic valve
16 90003930261 平垫圈 Washer
17 99012360441 角形支架 Bracket
18 90003802307 六角头螺栓 Bolt
19 90003931082 轻型弹性垫圈 Spring washer
20 AZ1500080159 燃油管总成 Fuel oil pipe
21 90003962607 空心螺栓 Bolt
22 90003171697 塑料紧固带 Plastics fastener
23 609E110070 联接螺栓 Bolt
24 90003098015 密封垫圈 Seal washer
25 AZ1500080155 燃油管 Fuel pipe
26 AZ1500090132 温度传感器 Thermometer Sensor
27 79000770116 扁形插头 Plug
28 90003098010 密封垫圈 Seal washer
