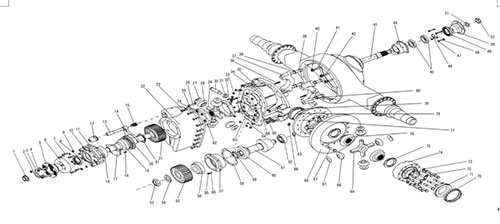

| NO | PART NO | QUANTITY | Designation | 名称 |
| 1 | WG40X1233 | 1 | Nut | 自锁螺母 |
| 2 | 1229N1730 | 1 | Washer | 垫圈 |
| 3 | Q151B1450TF2 | 4 | Screw | 六角头螺栓 |
| 4 | AZ9003888458 | 4 | Nut | 自锁螺母(14×1.5 10级) |
| 5 | AZ9761320281 | 1 | ф180 Toothed flange | 端面齿法兰（Φ180） |
| 6 | 3264G189 | 1 | Shield | 防护罩 |
| 7 | MS212045 1 | 7 | Screw | 螺栓 |
| 8 | A 1205J2428 | 1 | Gasket | 油封总成 |
| 9 | 1229D4632 | 7 | Washer | 平垫圈 |
| 10 | A 3226H1126 | 1 | Bearing housing | 输入轴承座总成 |
| 11 | 2203K9241 | 3 | Shim | 垫片 |
| 2203L9242 | 2 | Shim | 垫片 | |
| 2203M9243 | 1 | Shim | 垫片 | |
| 12 | A2 3261Q1057 | 1 | Cylinder | 气缸总成 |
| 13 | 2244K1025 | 1 | Lever | 轴间差速锁推杆 |
| 14 | AZ9761321086 | 1 | Shifting fork | 拨叉 |
| 15 | 2258U411 | 1 | Spring | 弹簧 |
| 16 | HM813810-HM813844 | 1 | Bearing | 轴承 |
| 17 | AZ9111320020 | 1 | Oil drip pan | 挡油罩 |
| 18 | Q150B0816、Q40308 | 各3 | Screw&Spring washer | 六角头螺栓、弹簧垫圈 |
| 19 | AZ9761321195 | 1 | Input shaft | 输入轴总成 |
| 20 | 3107U1061 | 1 | Mesh set | 啮合套成品 |
| 21 | AZ9761320085 | 1 | Driving cylindrical gear | 主动圆柱齿轮总成 |
| 22 | AZ9761321312 | 1 | Housing | 过桥箱 |
| 23 | Q150B1250 | 18 | Screw | 六角头螺栓 |
| 24 | Q340B10、1229K1597 | 各8 | Nut&Washer | 六角螺母、垫圈 |
| 25 | MN 312 1 | 1 | Nut | 六角头螺母（C-010M） |
| 26 | 41X1208 | 1 | Screw | 螺栓（10.9级） |
| 27 | 1229Q2929 | 4 | Washer | 止推垫片 |
| 28 | 2233K245 | 4 | Bevel pinion | 轴间差速器行星齿轮 |
| 29 | 3278N300 | 1 | Diff.spider | 轴间差速器十字轴成品 |
| 30 | AZ9761321167 | 1 | Screw | 止推螺栓 |
| 31 | 1227D472 | 1 | Nut | 六角螺母 |
| 32 | MS210080A 1 | 8 | Screw | 螺栓 |
| 33 | Q340B12、Q40312 | 各18 | Nut&Spring washer | Ⅰ型六角头螺母、弹簧垫圈 |
| 34 | MS216120 1 | 5 | Screw | 六角头螺栓（B-020M） |
| 35 | AZ9761321894 | 1 | Housing for 1st rear axle driver | 主减速器壳 |
| 36 | 1199R2176 | 2 | Split pin | 开口销-调整环锁止 |
| 37 | A 3212Z1196 | 1 | Spring housing | 轴承盖总成 |
| 38 | 42X1024 | 4 | Washer | 垫圈 |
| 39 | 41X1018 | 4 | Screw | 六角头螺栓(10.9级) |
| 40 | MN 316 1 | 3 | Screw | 六角螺母（10.0级 C-010M） |
| 41 | 4X1746 | 1 | Stud | 双头螺柱（10.9级） |
| 42 |
