2015-10-24 15:14:38
|

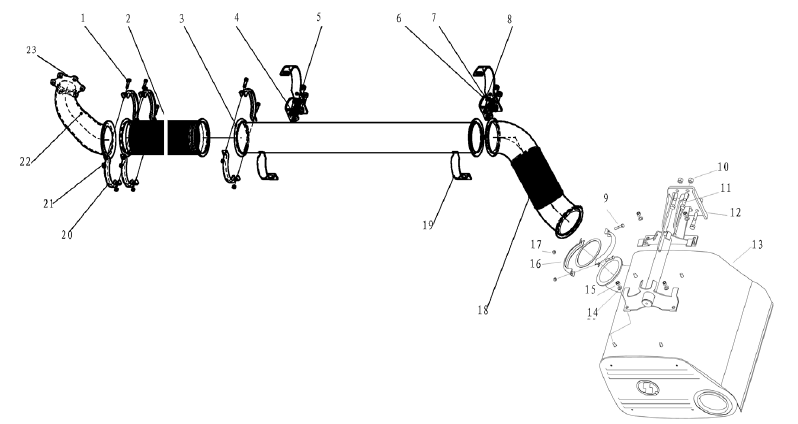

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q150B0845 |
六角头螺栓 |
Hex bolt |
|
2 |
DZ95259540017 |
卡箍连接波纹管 |
Hose |
|
3 |
DZ95319540070 |
排气管总成（二） |
Exhaust pipe
Assembly（2nd） |
|
4 |
DZ95319540006 |
支架 |
Bracket |
|
5 |
Q150B1035 |
六角头螺栓 |
Hex nut |
|
6 |
DZ95319540050 |
卡箍 |
Clip |
|
7 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex bolt |
|
8 |
Q150B0845 |
六角头螺栓 |
Hex nut |
|
9 |
Q150B1035 |
六角头螺栓 |
Hex nut |
|
10 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex bolt |
|
11 |
Q150B1460 |
六角头螺栓 |
Hex nut |
|
12 |
DZ93319540055 |
消声器支架 |
Muffler bracket |
|
13 |
DZ9112540884 |
消声器总成 |
Muffler |
|
14 |
Q40110 |
平垫圈 |
Washer |
|
15 |
Q33208 |
2 型全金属六角锁紧螺母 |
Hex bolt |
|
16 |
DZ9112540001 |
卡箍 |
Clip |
|
17 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex bolt |
|
18 |
DZ95319540008 |
挠性软管 |
Hose |
|
19 |
DZ95319540051 |
卡箍 |
Clip |
|
20 |
DZ9112540001 |
卡箍 |
Clip |
|
21 |
Q33208 |
2 型全金属六角锁紧螺母 |
Hex bolt |
|
22 |
DZ95319540060 |
排气管总成（一） |
Exhaust pipe
Assembly（1st） |
|
23 |
1.99113E+11 |
密封垫 |
Sealing mat |
|

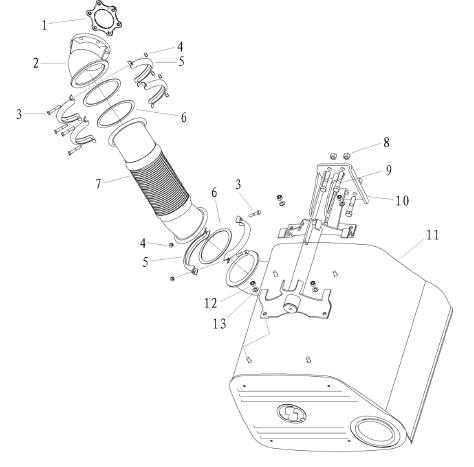

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
1.99113E+11 |
密封垫 |
Sealing mat |
|
2 |
DZ9112540918 |
排气管总成 |
Exhaust pipe
Assembly |
|
3 |
Q150B0845 |
六角头螺栓 |
Hex bolt |
|
4 |
Q33208 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
5 |
DZ9112540001 |
卡箍 |
Clip |
|
6 |
DZ9112540017 |
密封垫 |
Sealing mat |
|
7 |
DZ9112540118 |
挠性软管 |
Hose |
|
8 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
9 |
Q150B1470 |
六角头螺栓 |
Hex bolt |
|
10 |
DZ9112540881 |
消声器支架 |
Muffler bracket |
|
11 |
DZ9112540884 |
消声器总成 |
Muffler |
|
12 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
13 |
Q40110 |
平垫圈 |
Washer |
|

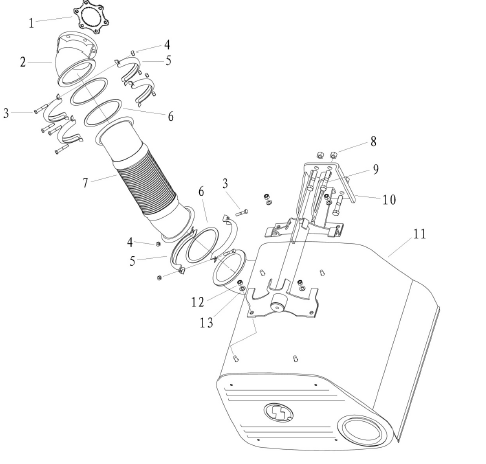

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
199113000000 |
密封垫 |
Sealing mat |
|
2 |
DZ93259540070 |
排气管总成 |
Exhaust pipe
Assembly |
|
3 |
Q150B0845 |
六角头螺栓 |
Hex bolt |
