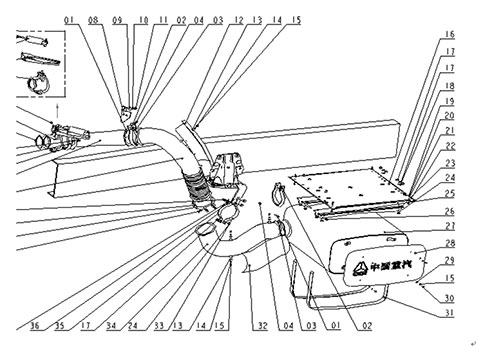

| NO | PART NO | Quantity | 名 称 | Part Name |
| 1 | Q150B1065 | 4 | Screw | 六角头螺栓 |
| 2 | WG9725540163 | 4 | Clamp | 卡箍 |
| 3 | AZ9719540019 | 4 | Gasket | 密封垫 |
| 4 | Q340B10 | 4 | Nut | 六角螺母 |
| 5 | WG9925540312 | 1 | Corrugated flexible metal tube | 金属软管总成 |
| 6 | WG9925540018 | 1 | Cast pipe | 铸造排气管总成 |
| 7 | WG9112540504 | 1 | Gasket | 密封垫 |
| 8 | AZ9925540309 | 1 | Bracket | 铸造排气管支架总成 |
| 9 | Q40210 | 3 | Washer | 大垫圈 |
| 10 | Q40310 | 1 | Spring washer | 弹簧垫圈 |
| 11 | Q150B1025 | 1 | Screw | 六角头螺栓 |
| 12 | WG9925540304 | 1 | Insulating bulkhead | 隔热罩 |
| 13 | Q40206 | 8 | Washer | 大垫圈 |
| 14 | Q150B0612 | 8 | Screw | 六角头螺拴 |
| 15 | Q40306 | 12 | Spring washer | 弹簧垫圈 |
| 16 | WG9925540281 | 1 | Insulating bulkhead | 隔热板 |
| 17 | Q33210 | 13 | Nut | 2型全金属六角锁紧螺母 |
| 18 | Q40110 | 2 | Washer | 平垫圈 |
| 19 | Q340B05 | 4 | Nut | 1型六角螺母 |
| 20 | Q40305 | 4 | Spring washer | 弹簧垫圈 |
| 21 | Q40105 | 4 | Washer | 平垫圈 |
| 22 | Q150B0520 | 4 | Screw | 六角头螺栓 |
| 23 | AZ9925540284 | 2 | Bracket | 支撑梁 |
| 24 | Q150B1030 | 11 | Screw | 六角头螺栓 |
| 25 | Q5003214 | 2 | Split pin | 开口销 |
| 26 | Q5101060 | 2 | Bolt | 销轴 |
| 27 | AZ9925540110 | 1 | Muffler | 消声器总成 |
| 28 | AZ9925540290 | 1 | Decorative panel | 消声器装饰板 |
| 29 | Q40106 | 4 | Washer | 平垫圈 |
| 30 | Q150B0620 | 4 | Screw | 六角头螺栓 |
| 31 | AZ9925540289 | 2 | Strap | 拉带总成 |
| 32 | WG9925540303 | 1 | Insulating bulkhead | 隔热罩 |
| 33 | AZ9925540142 | 1 | Clamp | 卡箍 |
| 34 | WG9925540313 | 1 | Exhaust pipe | 排气管总成 |
| 35 | AZ9925540143 | 1 | Clamp | 卡箍 |
| 36 | AZ9925540302 | 1 | Bracket | 排气管支架 |
| 37 | WG9925540003 | 1 | Brake control valve | EVB制动蝶阀 |
| Jan-37 | WG9925540003+001/1 | 1 | Brake control valve body | 制动蝶阀阀体 |
| 2/1 | WG9925540003+002/1 | 1 | Brake cylinder bracket | 制动气缸支架 |
| 3/1 | WG9925540003+003/1 | 1 | Brake cylinder | 制动气缸 |
