| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | AZ9918770000 | 1 | Electric theory drawing(VDO) | 电气原理图(VDO) |
| 2 | AZ9918770001 | 1 | Driver’s cab-line(VDO/OⅢ) | 驾驶室线束(VDO/国Ⅲ) |

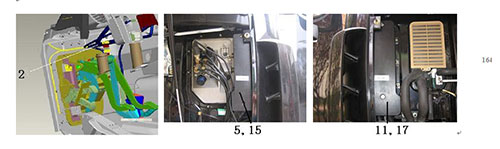

| 3 | WG1642110018 | 50 | Protect bar | 保护条 |
| 4 | WG9925770550 | 3 | Jam | 过线堵塞 |
| 5 | WG9925771003 | 1 | box for line(left) | 左过线保护盒体 |
| 6 | Q2140620 | 6 | Screw | 十字槽盘头螺钉 |
| 7 | Q40006 | 6 | Washer | 小垫圈 |
| 8 | Q40306 | 6 | Spring washer | 弹簧垫圈 |
| 9 | WG9925771007 | 1 | Cover | 驾驶室线束保护盖 |
| 10 | Q2140412 | 2 | Screw | 十字槽盘头螺钉 |
| 11 | WG9925771006 | 1 | box for line(right) | 右过线保护盒体 |
| 12 | Q2140620 | 6 | Screw | 十字槽盘头螺钉 |
| 13 | Q40006 | 6 | Washer | 小垫圈 |
| 14 | Q40306 | 6 | Spring washer | 弹簧垫圈 |
| 15 | WG9925771002 | 1 | box for line(left) | 左过线保护盒盖 |
| 16 | Q2140412 | 2 | Screw | 十字槽盘头螺钉 |
| 17 | WG9925771005 | 1 | box for line(right | 右过线保护盒盖 |
| 18 | Q2140412 | 2 | Screw | 十字槽盘头螺钉 |
| 19 | AZ9925770005 | 1 | Line | 左前围线束 |
| 20 | AZ9925770006 | 1 | Line | 右前围线束 |
| 21 | Q2762995 | 3 | Screw | 开槽半沉头自攻螺钉 |
| 22 | Q150B0630Q | 2 | Screw | 六角头螺栓 |
| 23 | Q40206 | 2 | Washer | 大垫圈 |
| 24 | Q40306 | 2 | Spring washer | 弹簧垫圈 |
| 25 | Q340B06 | 2 | Nut | I型六角螺母 |
| 26 | 190003171356 | 15 | Plastic fastness strip | 塑料紧固带 |
| 27 | 190003171392 | 15 | Plastic fastness strip | 塑料紧固带 |
| 28 | 190003179044 | 120 | Jacket | 穿线护套 |
| 29 | 190003179046 | 150 | Jacket | 穿线护套 |
| 30 | 190003179045 | 150 | Jacket | 穿线护套 |
| 31 | 190003179045 | 150 | Jacket | 穿线护套 |
| 32 | AZ9925770280 | 2 | Line fixed bracket | 线束固定支架 |
| 33 | Q150B0810 | 4 | Screw | 六角头螺栓 |
| 34 | Q40008 | 4 | Washer |
