| NO. | Part No. | Quantity | Part Name | Chinese name |

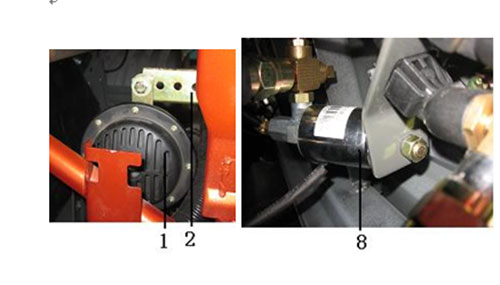

| 1 | WG9925710001 | 1 | Electro horn | 盆形电喇叭(双线) |
| 2 | AZ9925360818 | 1 | Angle bracket | 角形支架(三孔) |
| 3 | Q150B0818 | 1 | Screw | 六角头螺栓 |
| 4 | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 5 | Q40208 | 1 | Washer | 大垫圈 |
| 6 | Q1460825 | 1 | Screw, spring washer, even washer | 六角头螺栓、弹簧垫圈和平垫圈组合件 |
| 7 | Q340B08 | 1 | Nut | 1型六角螺母 |
| 8 | WG9718710003 | 1 | Electromagnetic valve for pneumatic horn | 气喇叭电磁阀 |
| 9 | Q150B0816 | 1 | Screw | 六角头螺栓 |
| 10 | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 11 | WG9100710005 | 1 | Air pressure switch | 气压开关（常开式） |

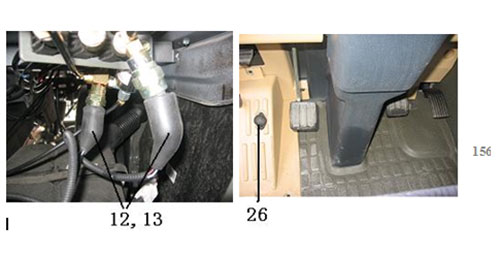

| 12 | WG9100710004 | 1 | Air pressure signal lamp switch | 气压信号灯开关 |
| 13 | WG9100710004 | 1 | Air pressure signal lamp switch | 气压信号灯开关 |

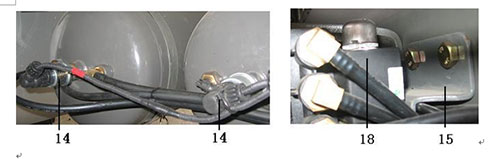

| 14 | WG9925710003 | 2 | Air pressure sensor | 气压传感器 |
| 15 | AZ9925710010 | 1 | Electromagnetic valve bracket | 电磁阀安装支架 |
| 16 | Q150B1235 | 2 | Screw | 六角头螺栓 |
| 17 | Q33012 | 2 | Nut | 全金属六角法兰面自锁螺母 |
| 18 | WG9719710004 | 2 | Electromagnetic valve（P99 Connectng） | 电磁阀(P99接头) |
| 19 | Q150B08120 | 2 | Screw | 六角头螺栓 |
| 20 | Q40308 | 2 | Spring washer | 弹簧垫圈 |
| 21 | Q41208 | 2 | Washer | 外锯齿锁紧垫圈 |
| 22 | Q340B08 | 4 | Nut | 1型六角螺母 |
| 23 | 190004000000 | 2 | Screw | 六角头螺塞 |
| 24 | l99000360477 | 2 | Gasket | 密封圈 |
| 25 | 1288 730061 | 2 | Gasket | O型密封圈 |
| 26 | WG9725716001 | 1 | Exhaust brake switch | 排气制动开关 |
| 27 | Q2714216 | 2 | Screw | 十字槽盘头自攻螺钉 |
| 28 | Q39748202 | 2 | Nut | 簧片螺母 |
