2015-10-19 12:54:26
|

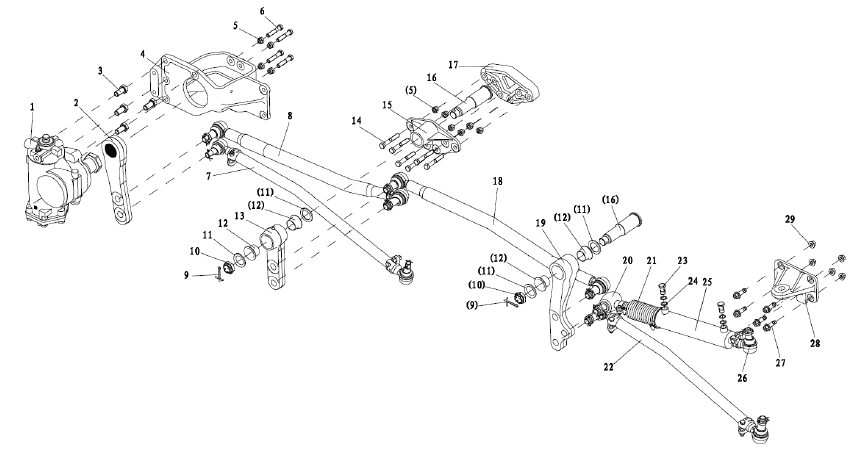

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9114470075 |
循环球式动力转向器 |
Steering gear |
|
2 |
DZ95259470009 |
转向摇臂 |
Pitman arm |
|
3 |
Q151B2040TF2 |
六角头螺栓 |
Hex screw |
|
4 |
DZ95259470029 |
转向器支架 |
Bracket |
|
5 |
1.90004E+11 |
自锁螺母 |
Locking nut |
|
6 |
Q151B1470TF2 |
六角头螺栓 |
Hex screw |
|
7 |
DZ9100430011 |
转向直拉杆 |
Drag link |
|
8 |
DZ9118430026 |
转向中间拉杆 |
Drag link |
|
9 |
Q5006356 |
开口销 |
Uncork pin |
|
10 |
81.90610.0031 |
六角开槽螺母 |
Hexagon slotted nut |
|
11 |
81.90713.0837 |
垫圈 |
Washer |
|
12 |
81.93001.0319 |
套筒 |
Sleeve |
|
13 |
DZ9118470601 |
中间摇臂 |
Middle Pitman arm |
|
14 |
Q151B1490TF2 |
六角头螺栓 |
Hex screw |
|
15 |
DZ9118470602 |
中间摇臂支架总成 |
Middle Pitman arm bracket |
|
16 |
DZ9118470605 |
销轴 |
Pin spindle |
|
17 |
DZ95319470012 |
连接支架 |
Bracket |
|
18 |
DZ9118430027 |
转向中间拉杆 |
Drag link |
|
19 |
DZ9118470604 |
转向第二摇臂 |
Pitman arm |
|
20 |
DZ95319470003 |
球接头 |
Ball joint |
|
21 |
DZ93319470015 |
油缸护套 |
Hydraulic cylinder jacket |
|
22 |
DZ9118430021 |
转向直拉杆 |
Drag link |
|
23 |
1.90004E+12 |
空心螺栓 |
Hollow screw |
|
24 |
Q72318T5F |
密封垫圈 |
Seal-washer |
|
25 |
DZ95319470001 |
液压油缸 |
Hydraulic cylinder |
|
26 |
81.95301.6225 |
球接头 |
Ball joint |
|
27 |
Q1811445TF2 |
六角头螺栓 |
Hex screw |
|
28 |
DZ9118470606
|
液压油缸支架 |
Bracket |
|
29 |
06.11251.2005 |
六角螺母 |
Locking nut |
