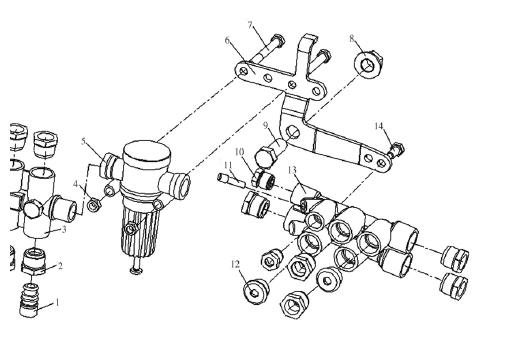

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.98181.6128 |
螺塞 |
Hex.screw |
|
2 |
81.98181.6115 |
球窝接头总成 |
Fitting |
|
3 |
81.52120.6081 |
带单向阀螺纹分气接头 |
fitting |
|
4 |
Q33408 |
全金属锁紧螺母 |
Nut |
|
5 |
81.52101.6269 |
限压阀 |
Pressure limited |
|
6 |
81.51710.0966 |
支架 |
bracket |
|
7 |
Q150B0865 |
六角头螺栓 |
Hex.screw |
|
8 |
Q33214 |
全金属锁紧螺母 |
Nut |
|
9 |
Q150B1435 |
六角头螺栓 |
Hex.screw |
|
10 |
81.98181.6114 |
球窝接头总成 |
Fitting |
|
11 |
81.98181.0170 |
堵塞 |
Jam |
|
12 |
06.08099.0015 |
堵塞 |
Jam |
|
13 |
81.98183.6289 |
辅助用气接头组 |
Fitting assemble for assistant use |
|

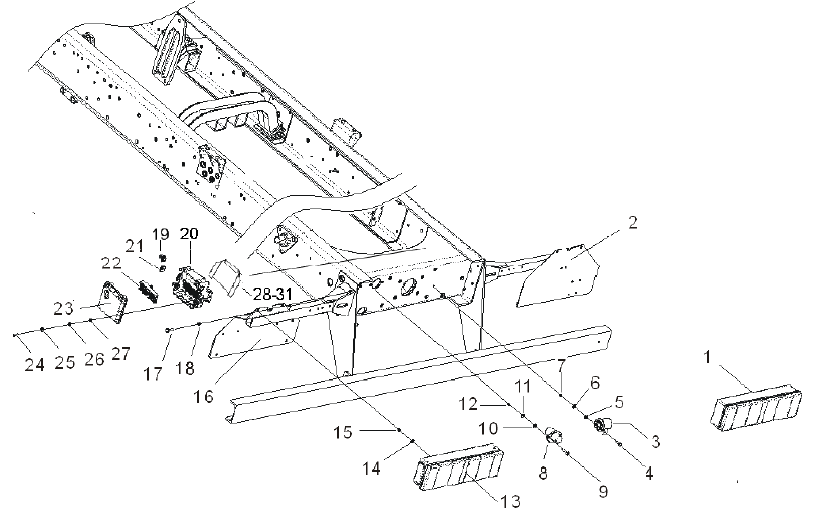

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.25225.6464 |
7 组合尾灯(右) |
Combination taillight |
|
|
|
|
(right) |
|
2 |
DZ9100940220 |
MAN 底盘右尾灯支架总成 |
Right Racket assy |
|
3 |
DZ9100580050 |
倒车蜂鸣器 |
Reverse buzzer |
|
4 |
Q150B0625 |
六角头螺栓 |
Hex screw |
|
5 |
Q40106 |
平垫圈 |
Washer |
|
6 |
Q40306 |
弹簧垫圈 |
Spring washer |
|
7 |
Q340B06 |
1 型六角螺母 |
Hex nut |
|
8 |
81.25432.6121 |
7 孔24N 型挂车插座(带电缆) |
7 hole trailer socket |
|
9 |
Q150B0820 |
六角头螺栓 |
Hex screw |
|
10 |
Q40108 |
平垫圈 |
Washer |
|
11 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
12 |
Q340B08 |
1 型六角螺母 |
Hex nut |
|
13 |
81.25225.6465 |
7 组合尾灯(左) |
Combination taillight (left) |
|
14 |
06.16160.2105 |
锁止垫片(8-A3C) |
Lock gasket |
|
15 |
Q340B08 |
1 型六角螺母 |
Locking nut |
|
16 |
DZ9100940210 |
MAN 底盘左尾灯支架总成 |
Left racket assy |
|
17 |
Q150B1435 |
六角头螺栓 |
Hex bolt |
|
18 |
Q33414 |
1 型全金属锁紧螺母 |
Locking nut |
|
19 |
DZ91189777021 |
分线盒体 |
Junction box body |
|
20 |
1.79E+11 |
电线护套 |
Wiring jacket |
|
21 |
1.90E+11 |
园形密封条 |
Cyl seal bar |
|
22 |
