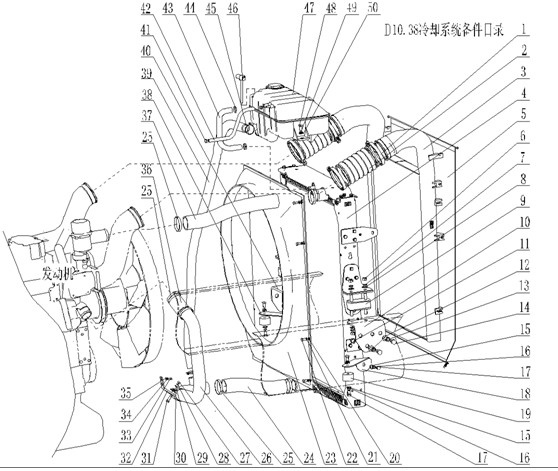

| NO. | Part No. | Quantity | Part Name | Chinese name |
| 1 | WG9925530022 | 4 | Clamp | 卡箍 |
| 2 | WG9925530053 | 2 | CAC Hose | 中冷器胶管 |
| 3 | WG9918530002 | 1 | Charge Air Cooler | 中冷器总成（D12/10/中） |
| 4 | WG9918530001 | 1 | Radiator | 散热器总成（D12/10/中） |
| 5 | WG9918530009 | 1 | Curtain | 防虫网总成(N07/420) |
| 6 | Q340B12 | 8 | Nut | Ⅰ型六角头螺母 |
| 7 | Q40312 | 8 | Spring washer | 弹簧垫圈 |
| 8 | Q40112 | 8 | Washer | 平垫圈 |
| 9 | AZ9925530004 | 2 | Rubber Bracket | 散热器支撑块总成 |
| 10 | AZ9925530043 | 1 | Right Bracket | 散热器右支架总成 |
| 11 | Q340B16 | 3 | Nut | Ⅰ型六角头螺母 |
| 12 | Q40116 | 3 | Washer | 平垫圈 |
| 13 | Q40316 | 3 | Spring washer | 弹簧垫圈 |
| 14 | Q150B1645 | 3 | Screw | 六角头螺栓 |
| 15 | Q40110 | 6 | Washer | 平垫圈 |
| 16 | Q40310 | 6 | Spring washer | 弹簧垫圈 |
| 17 | Q150B1018 | 6 | Screw | 六角头螺栓 |
| 18 | AZ9925530051 | 1 | Right Bracket | 散热器右辅助拉板 |
| 19 | 1384D 410007 | 2 | Rubber Washer | 橡胶金属软垫 |
| 20 | Q40108 | 8 | Washer | 平垫圈 |
| 21 | Q40308 | 8 | Spring washer | 弹簧垫圈 |
| 22 | Q150B0816 | 8 | Screw | 六角头螺栓 |
| 23 | WG9918530003 | 1 | Shroud | 护风罩总成(中马力/Φ704风扇) |
| 24 | WG9925530036 | 1 | Ootletwater pipe | 下水室胶管 |
| 25 | 190003989310 | 6 | Clamp | 软管卡箍 |
| 26 | WG9925530035 | 1 | Ootletwater pipe | 散热器出水钢管总成 |
| 27 | Q340B08 | 2 | Nut | 1型六角螺母 |
| 28 | Q40308 | 2 | Spring washer | 弹簧垫圈 |
| 29 | Q40108 | 2 | Washer | 平垫圈 |
| 30 | 190003990037 | 2 | Clamp | 管夹 |
| 31 | Q150B0825 | 2 | Screw | 六角头螺栓 |
| 32 | AZ9925530037 | 1 | Bracket | 水管支架 |
| 33 | Q150B1020 | 1 | Screw | 六角头螺栓 |
| 34 | Q40110 | 1 | Washer | 平垫圈 |
| 35 | Q40310 | 1 | Spring washer | 弹簧垫圈 |
| 36 | WG1000060241 | 1 | Hose | 橡胶软管 |
| 37 | WG9925530034 | 1 | Inletwater pipe | 上水室胶管 |
| 38 | AZ9925530050 | 1 | Left Bracket | 散热器左辅助拉板 |
| 39 | WG9925530021 | 1 | Expansion tank Hose | 膨胀水箱胶管 |
| 40 | AZ9925530040 | 1 | Left Bracket | 散热器左支架总成 |
| 41 | 199114530138 | 1 | Hose | 橡胶软管 |
| 42 | Q676B16 | 2 | Clamp | 软管卡箍 |
| 43 | WG9925530019 | 1 | Hose | 散热器泄气管 |
| 44 | Q67535 |
