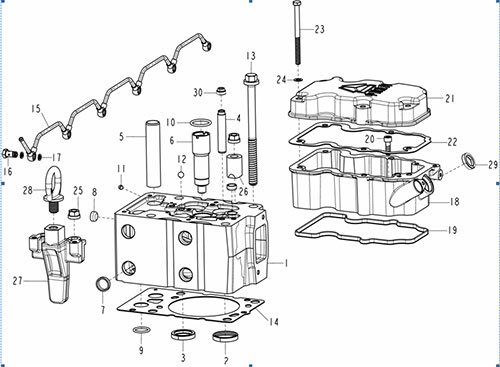

| NO. | Part No. | Chinese Name | Part name |
| - | AZ1246040010 | 气缸盖总成 | Cylinder head assembly |
| 1 | AZ1246040011 | 气缸盖 | Cylinder head |
| 2 | VG1246040012 | 进气门座 | Intake valve support |
| 3 | VG1246040013 | 排气门座 | Exhaust valve support |
| 4 | VG1246040014 | 气门导管 | Valve guide |
| 5 | VG1246040015 | 气门推杆衬套 | Valve push rod bush |
| 6 | VG1246040016 | 喷油器衬套 | Fuel injector bush |
| 7 | 190004000000 | 碗形塞 | Core hole plug |
| 8 | VG1246040031 | 碗形塞 | Core hole plug |
| 9 | VG1246040018 | 密封圈 | Sealing ring |
| 10 | VG1246040019 | 密封圈 | Sealing ring |
| 11 | VG1540040011 | 油孔堵塞 | Bolt plug |
| 12 | VG1540040013 | 钢珠 | Steel ball |
| 13 | VG1246040020 | 气缸盖主螺栓 | Cylinder head bolt |
| 14 | VG1246040021 | 气缸盖衬垫 | Cylinder head gasket |
| 15 | VG1246040001 | 缸盖放气管总成 | Vent-pipe assembly |
| 16 | VG1246040022 | 空心螺栓 | Hollow bolt |
| 17 | Q72310 | 密封垫圈 | Sealing washer |
| 18 | VG1246040004A | 摇臂罩下罩总成 | Cylinder head cover (down) |
| 19 | VG1246040023 | 气缸盖罩密封圈 | Cylinder head cover sealing ring |
| 20 | Q218B0825 | 内六角圆柱头螺钉 | Socket bolt |
| 21 | VG1246040003 | 摇臂罩上罩 | Cylinder head cover (top) |
| 22 | VG1246040005 | 气缸盖罩衬垫 | Cylinder head cover gasket |
| 23 | Q150B08110 | 六角头螺栓 | Hex head bolt |
| 24 | Q41808 | 波形弹簧垫圈 | Spring washer |
| 25 | VG1200040034 | 带肩螺母 | Nut |
| 26 | VG1200040023A | 夹紧块 | Clip |
| 27 | VG1246040008 | 吊环夹紧块 | Clamping yoke |
| 28 | VG14010388 | 吊环螺钉 | Eye screw |
| 29 | VG1540040022A | 骨架油封 | Reinforced seal |
| 30 | VG1246050027 | 气门阀杆密封套 | Valve stem seal |
