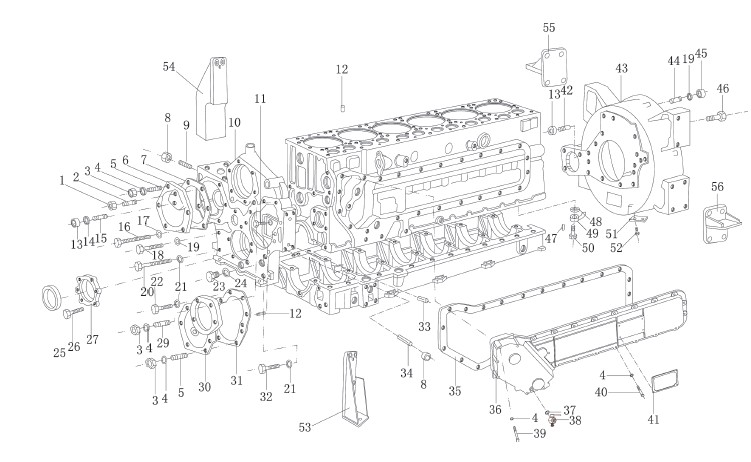

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 90003888451 | 2型金属六角头螺母 | Nut |
| 2 | 90003813470 | 双头螺柱 | Stud |
| 3 | 90003871352 | 1型六角头螺母 | Nut |
| 4 | 90003902023 | 波形弹簧性垫圈 | Spring washer |
| 5 | 90003813429 | 双头螺柱 | Stud |
| 6 | 615600010069 | 空压机齿轮盖 | Cover |
| 7 | 614010040 | 空压机齿轮盖垫片 | Shim |
| 8 | 90003888453 | 2型金属六角头锁紧螺母 | Nut |
| 9 | 90003813638 | 双头螺柱 | Stud |
| 10 | 612600010932 | 正时齿轮室 | Gear |
| 11 | 90003802523 | 六角头螺栓 | Bolt |
| 12 | 90003901507 | 圆柱销 | Pin |
| 13 | 90003888452 | 2型金属六角锁紧螺母 | Nut |
| 14 | 90003930012 | 垫圈 | Washer |
| 15 | 90003811531 | 双头螺柱 | Stud |
| 16 | 90003802576 | 六角头螺栓 | Bolt |
| 17 | 90003932024 | 波形弹性垫圈 | Spring washer |
| 18 | 90003802561 | 六角头螺栓 | Bolt |
| 19 | 90003931122 | 六角头螺栓 | Bolt |
| 20 | 90003800571 | 六角头螺栓 | Bolt |
| 21 | 90003932025 | 鞍形弹性垫圈 | Spring washer |
| 22 | 90003862524 | 内六角圆柱头螺钉 | Screw |
| 23 | 90003962051 | 2型金属六角头螺母 | Nut |
| 24 | 90003098086 | 双头螺柱 | Stud |
| 25 | 61500010037 | 1型六角头螺母 | Nut |
| 26 | 90003862327 | 波形弹簧性垫圈 | Spring washer |
| 27 | 612600010928 | 双头螺柱 | Stud |
| 29 | 90003813443 | 空压机齿轮盖 | Cover |
| 30 | 612600010171 | 空压机齿轮盖垫片 | Shim |
| 31 | 614010070 | 2型金属六角头锁紧螺母 | Nut |
| 32 | 90003862532 | 双头螺柱 | Stud |
| 33 | 90003909626 | 正时齿轮室 | Gear |
| 34 | 90003813628S | 六角头螺栓 | Bolt |
| 35 | 614010084B | 圆柱销 | Pin |
| 36 | 612600011654 | 2型金属六角锁紧螺母 | Nut |
| 37 | 90003098014 | 垫圈 | Washer |
| 38 | 612600010465 | 双头螺柱 | Stud |
| 39 | 90003800465 | 六角头螺栓 | Bolt |
| 40 | 90003802424 | 波形弹性垫圈 | Spring washer |
| 41 | 612600010760 | 六角头螺栓 | Bolt |
| 612600011335 | 六角头螺栓 | Bolt | |
| 612600010791 | 六角头螺栓 | Bolt | |
| 42 | 90003813527 | 鞍形弹性垫圈 | Spring washer |
| 43 | 612600010708 | 内六角圆柱头螺钉 | Screw |
| 44 | 90003813537 | 双头螺柱 | Stud |
| 45 | 90003871305 | 1型六角螺母 | Nut |
| 46 | 61500010101 | 飞轮壳螺栓 | Bolt |
| 47 | 61500010062 | 飞轮壳螺栓 | Bolt |
| 48 | 90003909603 | 弹性圆柱销 | Pin |
| 49 | 90003098015 | 密封垫圈 | Seal washer |
| 50 | 612600010659 | 喷嘴组件 | Spraying nozzle |
| 51 | 90003962621 | 空心螺栓 | Bolt |
| 52 | 1800210011 | 观察孔盖 | Cover |
| 53 | 90003802511 | 六角头螺栓 | Bolt |
| 54 | 100GF.06 | 前支架（右） | Bracket |
| 55 | 100GF.07 | 前支架（左） |
