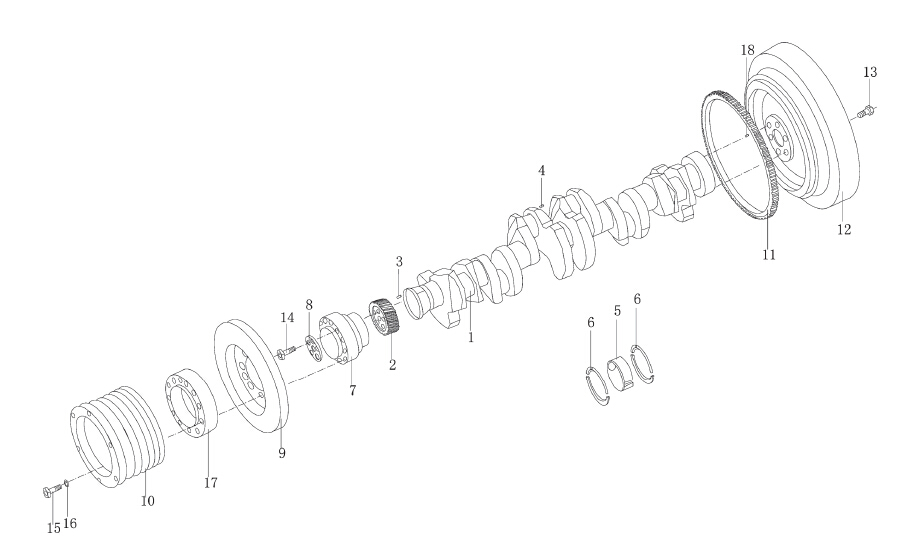

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 12272497 | 曲轴 | CRANKSHAFT |
| 2 | 12273248 | 曲轴正时齿轮 | TIMING GEAR |
| 3 | 1115416 | 弹性圆柱销 | STRAIGHT PIN |
| 4 | 12151364 | 堵塞 | PLUG |
| 5 | 12160569 | 主轴瓦组件 | MAIN BEARING |
| 6 | 12160535 | 止推片组件 | THRUST RING |
| 7 | 12189567 | 轮毂 | HUB |
| 8 | 12160534 | 垫片 | PLAIN WASHER |
| 9 | 12272805 | 减震器 | VIBRTION DAMPER |
| 10 | 13021260 | 皮带轮 | V-GROOVED PULLEY |
| 11 | 12166719 | 齿圈 | GEAR RING |
| 12 | 13021275 | 飞轮 | FLYWHEEL |
| 13 | 1110847 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 14 | 1152870 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 15 | 1152829 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 16 | 1152752 | 平垫圈 | PLAN WASHER |
| 17 | 13024471 | 连接盘 | ADAPTER |
| 18 | 1125638 | 弹性圆柱销 | STRAIGHT PIN |
