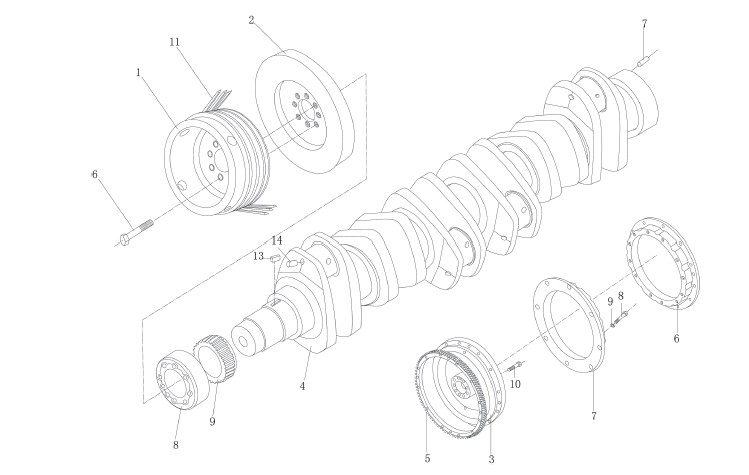

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600020081 | 皮带轮 | Pulley |
| 61560020017 | 皮带轮 | Pulley | |
| 2 | 61560020010 | 减震器 | Vibrator |
| 3 | 612600020041 | 飞轮 | Flywheel |
| 4 | 61560020029 | 曲轴总成 | Crankshaft assembly |
| 61500020071 | 曲轴总成 | Crankshaft assembly | |
| 5 | 612600020208 | 飞轮齿圈(3.5模数) | Flywheel ring |
| 6 | 90003802558 | 六角头螺栓 | Hexagon bolt |
| 7 | 120GFZ-6.02 | 飞轮联接盘 | Flywheel connecting ring |
| 8 | 90011260004 | 六角头螺栓 | Hexagon bolt |
| 9 | 90003932024 | 波形弹性垫圈 | Spring washer |
| 10 | 61500020046 | 六角头螺栓 | Hexagon bolt |
| 11 | 81500060228 | 三角皮带 | Triangle belt |
| 61500060217 | 三角皮带 | Triangle belt | |
| 13 | 90003960569 | 普通平键 | Flat key |
| 14 | 90003961504 | 圆柱销 | Dowel pin |
