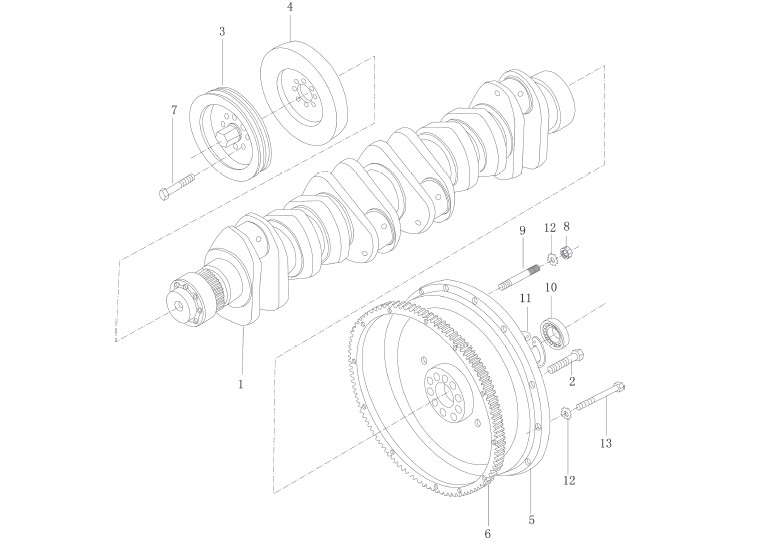

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600020233 | 曲轴总成 | Crankshaft |
| 2 | 61500020046 | 六角头螺栓 | Screw |
| 3 | 61800021001 | 皮带轮 | Belt pulley |
| 4 | 61800020012 | 减振器 | Vibration damper |
| 5 | 612600020220 | 飞轮 | Flywheel |
| 6 | 612600020208 | 飞轮齿圈 | Ring gear |
| 7 | 90003802558 | 六角头螺栓 | Screw |
| 8 | 90003871305 | 1型六角螺母 | Nut(I) |
| 9 | 9000381357l | 双头螺柱 | Stud |
| 10 | 90003311416 | 向心球轴承 | Ball bearing |
| 11 | 90003934310 | 孔用弹性挡圈 | Circlip |
| 12 | 90003932025 | 鞍形弹性垫圈 | Washer |
| 13 | 90003802569 | 六角头螺栓 | Screw |
