WP10 STATE THREE SERIES PASSENGER CAR

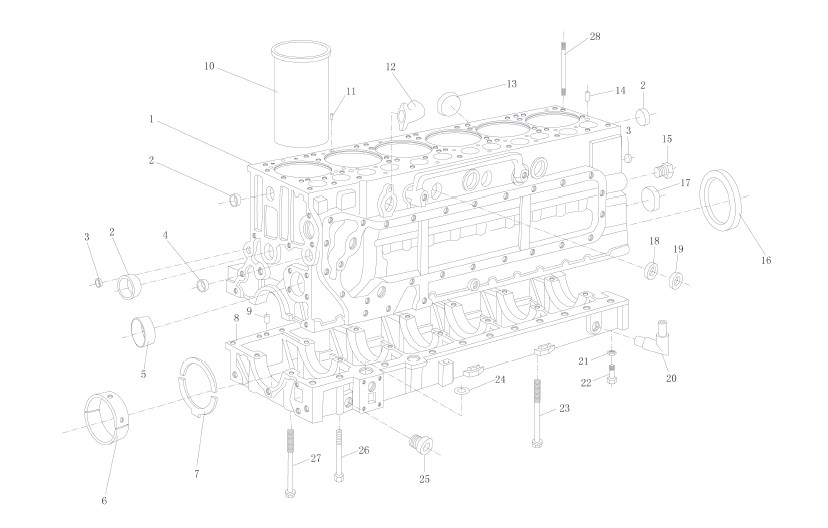

CRANKCASE

2015-11-23 22:44:44

 NO. Part No. Chinese Name Part Name
1 612600011862 气缸体 Crankcase
2 90003982121 碗形塞 Corehole plug
3 90003989480 碗形塞 Corehole plug
4 90003989204 碗形塞 Corehole plug
5 615600l0029 凸轮轴衬套 Bush
612600010990 凸轮轴衬套 Bush
6 81500010046 主轴瓦(付) Shell pin
7 81500010125 止推片(付) Stop washer
8 61500010366 曲轴箱 Crank case
9 90003901604A 圆柱销 Dowel pin
10 61500010344 气缸套 Liner
11 90003909626 弹性圆柱销 Dowel pin
12 614010279 通风弯管 Elbow connector
13 90003989210 碗形塞 Corehole plug
14 90003901604 圆柱销 Dowel pin
15 61460070011 主油道后螺塞 Plug
16 61500010100 后油封 Gasket
17 90003989288 碗形塞 Corehole plug
18 90003989289 碗形塞 Corehole plug
19 90003989215 碗形塞 Corehole plug
20 612600070097 回油弯管 Pipe
21 188250083 自锁垫圈 Washer
22 90003862428 圆柱头内六角螺钉 Screw
23 614010217 主轴承螺栓 Bolt
24 81400010032 密封圈 Seal ring
25 90003962050 内六角螺塞 Plug
26 90003802493 六角头螺栓 Bolt
27 614010114 主轴承螺栓 Bolt
28 61500010185 气缸盖螺栓 Bolt
