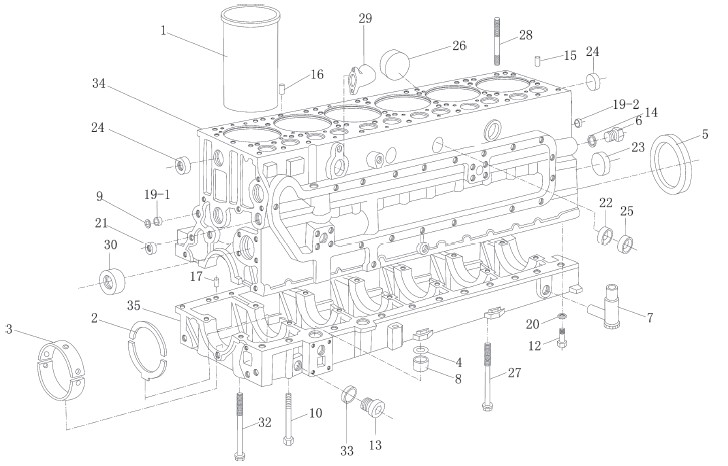

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61500010344 | 气缸套 | Liner |
| 2 | 81500010125 | 止推片(付) | Stop washer |
| 3 | 81500010046 | 主轴瓦(付) | Shell pin |
| 4 | 81400010032 | 密封圈 | Gasket |
| 5 | 90003074487 | 后油封 | Gasket |
| 612600010817 | 后油封(分动箱用) | Gasket | |
| 6 | 61460070011 | 主油管后螺塞 | Screw |
| 7 | 612600070097 | 回油弯管 | Pipe |
| 612600070083 | 回油弯管 | Pipe | |
| 612600070107 | 回油弯管 | Pipe | |
| 8 | 614 010120 | 套管 | Sleeve |
| 9 | 407010046 | 密封圈 | Gasket |
| 10 | 90003802493 | 六角头螺栓 | Screw |
| 11 | 90003862428 | 圆柱头内六角螺钉 | Screw |
| 12 | 90003962050 | 内六角螺塞 | Screw |
| 13 | 90003098086 | 密封垫圈 | Joint |
| 14 | 90003901604 | 圆柱销 | Dowel pin |
| 15 | 90003909626 | 弹性圆柱销 | Dowel pin |
| 16 | 90003901604A | 圆柱销 | Dowel pin |
| 19-1 | 90003989480 | 碗形塞 | Corehole plug |
| 19-2 | 90003984080 | 碗形塞 | Corehole plug |
| 20 | 188250083 | 自锁垫圈 | Circlip |
| 21 | 90003989204 | 碗形塞 | Corehole plug |
| 22 | 90003989289 | 碗形塞 | Corehole plug |
| 23 | 90003989288 | 碗形塞 | Corehole plug |
| 24 | 90003982121 | 碗形塞 | Corehole plug |
| 25 | 90003989215 | 碗形塞 | Corehole plug |
| 26 | 90003989210 | 碗形塞 | Corehole plug |
| 27 | 614010217 | 主轴承螺栓 | Screw |
| 28 | 6150001185 | 气缸盖螺栓 | Stud |
| 29 | 614010279 | 通风弯管 | Elbowconnector |
| 30 | 61560010029 | 凸轮轴衬套 | Bush |
| 32 | 614010114 | 主轴承螺栓 | Screw |
| 33 | 90003098086 | 密封垫圈 | Joint |
| 34 | 61560010095 | 气缸体 | Crank case |
| 35 | 61560010109 | 曲轴箱 | Crank case |
