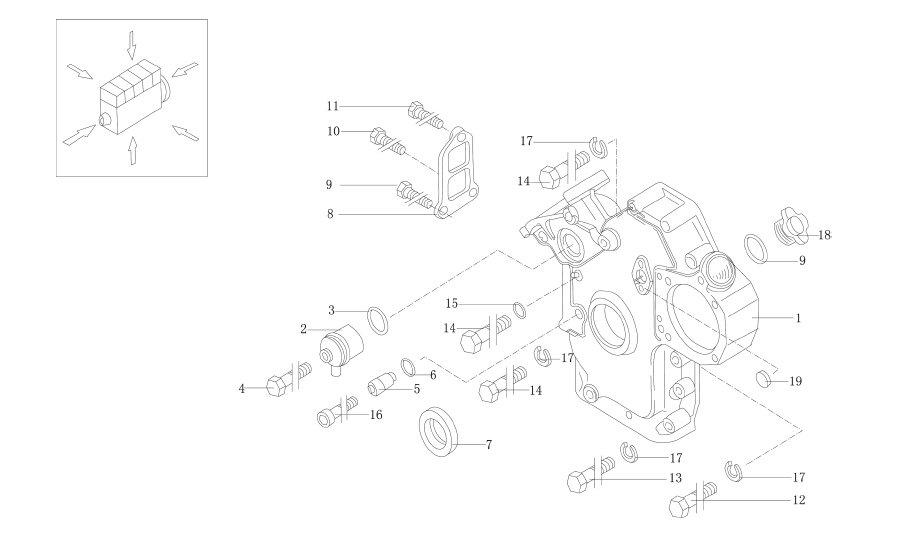

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 12272175 | 前墙盖（齿轮侧） | CRANKC.END COVER |
| 2 | 12158431 | 呼吸器体 | HOUSING/CASE |
| 3 | 1161340 | O形橡胶圈 | O-SEAL |
| 4 | 1111096 | 六角头螺栓 | HEXAGON BOLT |
| 5 | 12190581 | 轴 | FLANGED BUSH |
| 6 | 6214722 | O形橡胶圈 | O-SEAL |
| 7 | 12188100 | 经向密封圈组件 | ROTARY SHAFT SEAL |
| 8 | 13020243 | 盖板 | SHIELD |
| 9 | 1112331 | 六角头螺栓 | HEXAGON BOLT |
| 10 | 1137083 | 六角头螺栓 | HEXAGON BOLT |
| 11 | 1112416 | 六角头螺栓 | HEXAGON BOLT |
| 12 | 1139584 | 六角头螺栓 | HEXAGON BOLT |
| 13 | 1111151 | 六角头螺栓 | HEXAGON BOLT |
| 14 | 1111184 | 六角头螺栓 | HEXAGON BOLT |
| 15 | 1118647 | 密封垫圈 | SEALING RING |
| 16 | 1151462 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 17 | 1177981 | 弹簧垫圈 | SPRING LOCK WASHER |
| 18 | 12165572 | 六角螺塞 | SCREW PLUG |
| 19 | 1152711 | 碗形塞 | COVER PLUG |
