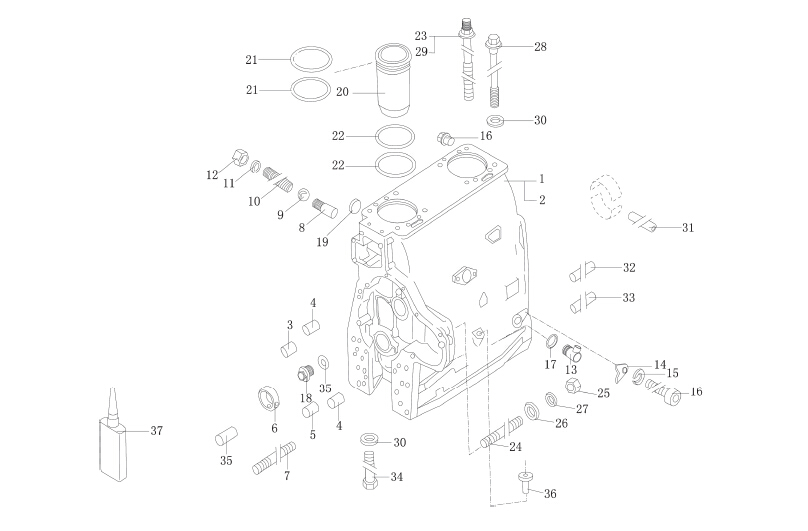

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 13022290 | 机体组件 | ENGINE BLOCK |
| 2 | 13020224 | 机体组件 | ENGINE BLOCK |
| 3 | 12151365 | 塞子 | PLUG |
| 4 | 12273515 | 塞子 | PLUG |
| 5 | 12273557 | 塞子 | PLUG |
| 6 | 12159599 | 凸轮轴衬套 | BEARING BUSH |
| 7 | 1153348 | 双头螺柱 | STUD |
| 8 | 12167053 | 螺杆 | SCREW FITTING |
| 9 | 1116958 | 球 | BALL |
| 10 | 1221356 | 弹簧 | COMPRESSION SPRING |
| 11 | 1118700 | 密封垫圈 | SEALINE RING |
| 12 | 12167057 | 帽形螺母 | ACORN NUT |
| 13 | 12160117 | 焊接弯管 | MANIFOLD |
| 14 | 12160129 | 固定板 | RETAINING PLATE |
| 15 | 1177981 | 弹簧垫圈 | SPRING LOCK WASHER |
| 16 | 1151498 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 17 | 1153869 | O型密封圈 | O-SEAL |
| 18 | 1118952 | 六角头螺塞 | SCREW PLUG |
| 19 | 13021200 | 碗形塞 | COVER PLUG |
| 20 | 13024173 | 气缸套 | CYLINDER LINER |
| 21 | 1153805 | O型橡胶圈 | O-SEAL |
| 22 | 1153804 | O型橡胶圈 | O-SEAL |
| 23 | 13023589 | 气缸盖螺栓 | CYLINDER HEAD BOLT |
| 24 | 1113477 | 双头螺柱 | STUD |
| 25 | 13021999 | 六角螺母 | HEXAGON BOLT |
| 26 | 12166173 | 平垫圈 | PLAIN WASHER |
| 27 | 1117867 | 齿形垫片 | TOOTH LOCK WASHER |
| 28 | 12200620 | 气缸盖螺栓 | CYLINDER HEAD BOLT |
| 29 | 12200621 | 气缸盖螺栓 | CYLINDER HEAD BOLT |
| 30 | 12165568 | 平垫圈 | PLAIN WASHER |
| 31 | 1115413 | 弹性圆柱销 | STRAIGHT PIN |
| 32 | 1105156 | 圆柱销 | PARALLEL PIN |
| 33 | 1105182 | 圆柱销 | PARALLEL PIN |
| 34 | 12164651 | 六角头螺栓 | HEXAGON BOLT |
| 35 | 12159445 | 定位套管 | SLEEVE |
| 36 | 13023517 | 管接头 | PIPE CONNECTION |
| 37 | 1016112 | 密封胶 | PACKING COMPOUND |
