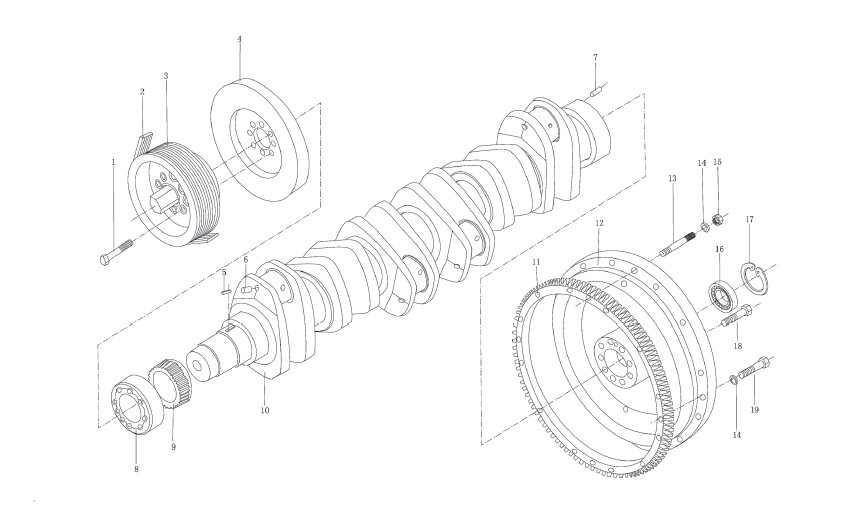

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 90003802558 | 六角头螺栓 | Bolt |
| 2 | 61260002025l | 汽车多楔带 | |
| 3 | 612600020252 | 皮带轮 | Belt pulley |
| 4 | 61560020010 | 减震器 | Vibration damper |
| 5 | 90003960569 | 普通平键 | Key |
| 6 | 90003961504 | 圆柱销 | Cylinderical pin |
| 612600020311 | 堵塞 | Plug | |
| 7 | 90003901418 | 圆柱销 | Pin |
| 8 | 61500020070 | 法兰 | Flange |
| 9 | 614020038 | 曲轴齿轮 | Crank shaft wheel |
| 10 | 61500020071 | 曲轴总成 | Crankshaft C |
| 61560020029 | 曲轴总成 | Crankshaft C | |
| 61500020012 | 曲轴 | Crankshaft | |
| 61560020024 | 曲轴 | Crankshaft | |
| 11 | 612600020208 | 飞轮齿圈 | Ring gear |
| 12 | 612600020220 | 飞轮 | Flywheel |
| 13 | 90003813571 | 双头螺柱 | Stud |
| 14 | 90003932024 | 波形弹性垫圈 | Spring washer |
| 15 | 90003871305 | 1 型六角螺母 | Nut |
| 16 | 90H003311416 | 向心球轴承 | Ball bearing |
| 17 | 90003934310 | 孔用弹性挡圈 | Snap ring |
| 18 | 61500020046 | 六角头螺栓 | Bolt |
| 19 | 90003800579 | 六角头螺栓 | Bolt |
