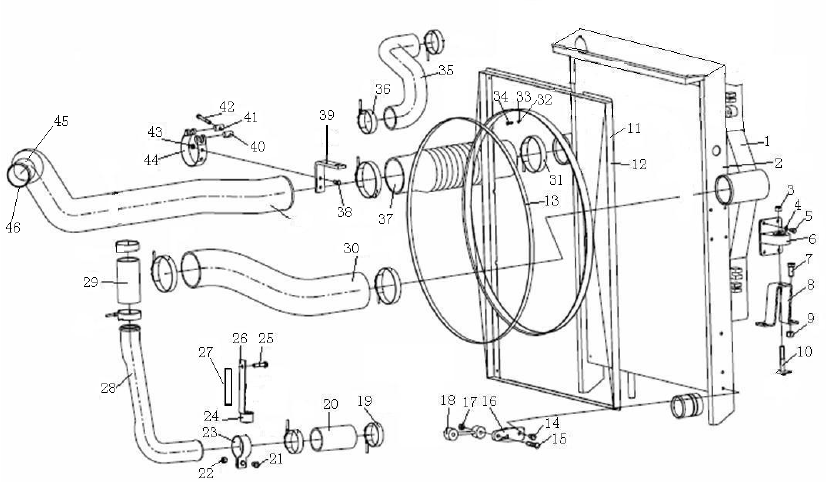

NO. |
Part No. |
Chinese name |
Part name |
|
1 |
DZ95259532203 |
散热器总成 |
Radiator |
|
2 |
DZ95259531501 |
中冷器总成 |
CAC |
|
3 |
06.11240.0411 |
六角锁紧螺母 |
Hex nut |
|
4 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
5 |
Q150B0816 |
六角头螺栓 |
Hex screw |
|
6 |
81.06225.6008 |
散热器托架总成 |
Radiator support
|
|
7 |
Q150B1445 |
六角头螺栓 |
Hex screw |
|
8 |
DZ95259538860 |
散热器右支架 |
Right support |
|
DZ95259538870 |
散热器左支架 |
Left support |
|
|
DZ95259538999 |
右连接支架 |
Right support |
|
|
DZ95259538894 |
散热器右支架 |
Right support |
|
|
DZ95259538893 |
散热器左支架 |
Left support |
|
|
9 |
Q33214 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
10 |
DZ9112538040 |
螺杆支架总成 |
Screw support
assembly |
|
DZ95259538800 |
方头螺栓 |
Square screw |
|
|
11 |
DZ9114531011 |
海绵密封条 |
Hermetical
pastern |
|
DZ9114531012 |
海绵密封条 |
Hermetical
pastern |
|
|
DZ9114531013 |
海绵密封条 |
Hermetical
pastern |
|
|
12 |
DZ9112538032 |
风扇护风罩 |
Air duct
assembly |
|
13 |
DZ91259538601 |
蜗杆传动式软管卡箍 |
Clip |
|
14 |
Q150B0816 |
六角头螺栓 |
Hex screw |
|
15 |
Q150B1050 |
六角头螺栓 |
Hex screw |
|
16 |
DZ95259538816 |
右连接板总成 |
Right connect
bracket |
|
DZ95259538817 |
左连接板总成 |
Left connect
bracket |
|
|
17 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
18 |
81.06245.0043 |
摆动支承总成 |
Swing support
assembly |
|
19 |
Q67683 |
B 型蜗杆传动式软管卡箍 |
Clip |
|
20 |
DZ95259535508 |
散热器出水胶管 |
Outlet rubber
hose |
|
21 |
Q150B1085 |
六角头螺栓 |
Hex screw |
|
22 |
Q33210 |
2 型全金属六角锁紧螺母 |
Hex nut |
|
23 |
DZ93259538605 |
水管夹 |
Water pipe clip |
|
24 |
DZ93259537002 |
缓冲块 |
Buffer |
|
25 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
26 |
DZ93259538076 |
水管支架 |
Bracket |
|
27 |
DZ93259538077 |
支架垫块 |
Bracket buffer |
|
28 |
DZ95259534407 |
WP10 下水管 |
Drain pipe |
|
DZ93259534072 |
散热器出水管总成 |
Drain pipe
assembly |
|
|
29 |
DZ93259535804 |
变径硅胶管55-60 |
Rubber hose |
|
30 |
DZ95259535815 |
中冷器出气管（成型管） |
Rubber hose |
|
31 |
DZ9003532115 |
T 型卡箍 |
Clip |
|
32 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
33 |
Q40208 |
大垫圈 |
Washer |
|
34 |
Q150B0816TF2 |
六角头螺栓 |
Hex screw |
|
35 |
