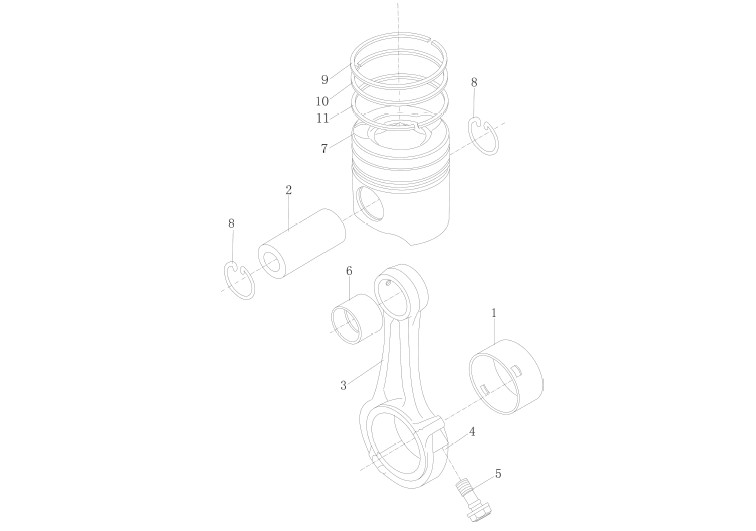

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61800030049 | 连杆轴瓦 | Shell pin |
| 612600030033 | 连杆轴瓦 | Shell pin | |
| 2 | 61560030013 | 活塞销 | Piston pin |
| 3 | 61800030040 | 连杆体 | Connecting rod |
| 4 | 61800030044 | 连杆盖 | Connecting cover |
| 5 | 61800030019 | 连杆螺栓 | Bolt |
| 6 | 61500030077 | 连杆衬套 | Bushing |
| 7 | 612600030017 | 活塞 | Piston |
| 8 | 81560030012 | 活塞销挡圈 | Circlip |
| 9 | 61560030047 | 梯形环 | Double ladder ring |
| 10 | 612600030019 | 锥面环 | Conical ring |
| 11 | 61560030045 | 螺旋撑簧油封 | Spiral spring oil ring |
