226B SERIES CONSTRUCTION MACHINERY

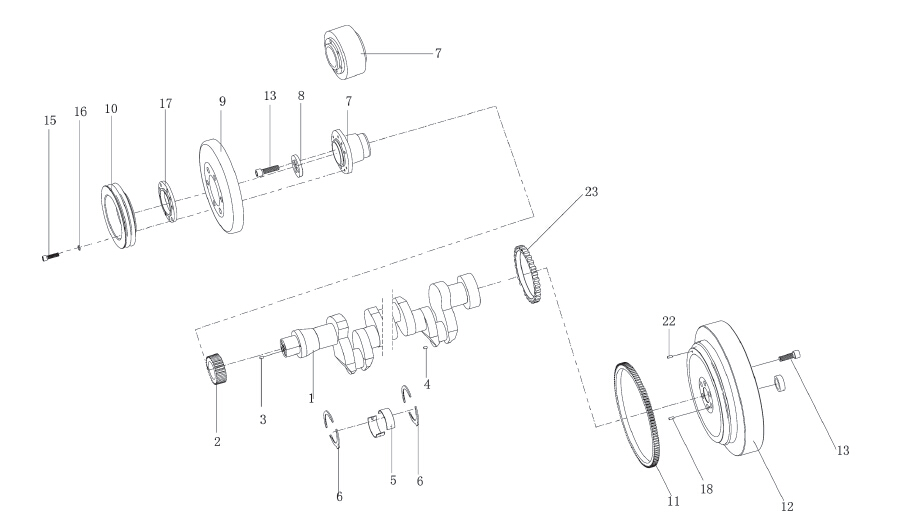

C R A N K S H A F T A S S EMB L Y

2015-11-17 23:28:10





 NO. Part No. Chinese Name Part Name
1 12272491 曲轴 CRANKSHAFT
12272490 曲轴 CRANKSHAFT
12272497 曲轴 CRANKSHAFT
2 12273248 曲轴正时齿轮 TIMING GEAR
3 1115416 弹性圆柱销 STRAIGHT PIN
4 12151364 堵塞 PLUG
5 12160569 主轴瓦组件 MAIN BEARING
6 12160535 止推片组件 THRUST RING
7 12190647 轮毂 HUB
12188194 轮毂 HUB
12160595 轮毂 HUB
8 12160534 垫片 PLAIN WASHER
9 12273121 减震器 VIBRATION DAMPER
10 13024580 曲轴皮带轮 V-GROOVED PULLEY
13024343 曲轴皮带轮 V-GROOVED PULLEY
13024077 曲轴皮带轮 V-GROOVED PULLEY
13025097 曲轴皮带轮 V-GROOVED PULLEY
13020304 曲轴皮带轮 V-GROOVED PULLEY
13024506 曲轴皮带轮 V-GROOVED PULLEY
13023418 曲轴皮带轮 V-GROOVED PULLEY
11 12166719 齿圈 GEAR RIM
13020321 齿圈 GEAR RIM
12 13022766 飞轮 FLYWHEEL
13022598 飞轮 FLYWHEEL
13025661 飞轮 FLYWHEEL
13024791 飞轮 FLYWHEEL
13022744 飞轮 FLYWHEEL
13024273 飞轮 FLYWHEEL
13022683 飞轮 FLYWHEEL
13028547 飞轮 FLYWHEEL
13022883 飞轮 FLYWHEEL
13 1152870 内六角圆柱头螺钉 CHEESE HEAD SCREW
1110847 内六角圆柱头螺钉 CHEESE HEAD SCREW
13024381 内六角圆柱头螺钉 CHEESE HEAD SCREW
1112682 六角头螺栓 HEXAGON BOLT
1110843 内六角圆柱头螺钉 CHEESE HEAD SCREW
15 1138747 内六角圆柱头螺钉 CHEESE HEAD SCREW
1110571 内六角圆柱头螺钉 CHEESE HEAD SCREW
1110659 内六角圆柱头螺钉 CHEESE HEAD SCREW
16 1178365 弹簧垫圈 SPRING LOCK WASHER
17 13023754 联接盘 ADAPTER
12190646 联接盘 ADAPTER
18 1125638 弹性圆柱销 STRAIGHT PIN
22 12190554 定位销 PIN
23 12166718 二级平衡机构齿圈 GEAR RIM
