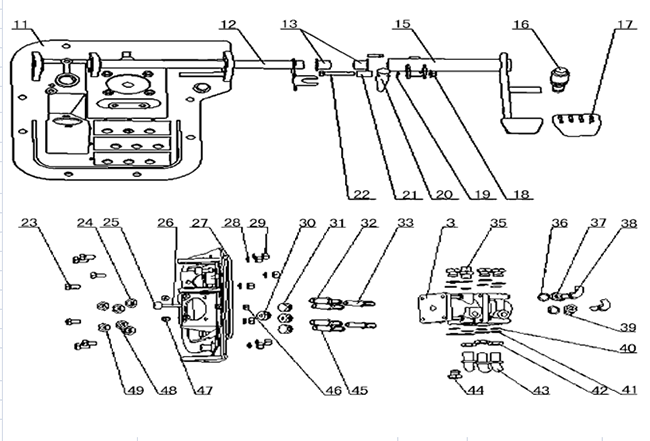

| NO. | Part No. | Part Name | Quantity |
| 11 | AZ9719360050 | Combination bracket | 1 |
| 12 | AZ9719360051 | Shaft | 1 |
| 13 | AZ9719360060 | Bush | 2 |
| 14 | Q1840616 | Screw | 1 |
| 15 | AZ9719360055 | Brake foot pedal | 1 |
| 16 | WG9100710006 | Brake lamp switch | 1 |
| 17 | AZ9123230226 | Rubber cover | 1 |
| 18 | Q341B08 | Nut | 1 |
| 19 | Q5002016 | Split pin | 1 |
| 20 | AZ9719360063 | Push rod | 1 |
| 21 | AZ9719360062 | Bolt | 1 |
| 22 | Q173B0845 | Screw | 1 |
| 23 | Q150B1020 | Screw | 5 |
| 23A | Q150B1025 | Screw | 2 |
| 24 | Q351B14T15 | Nut | 2 |
| 25 | AZ9123360067 | Plug | 1 |
| 26 | Q150B0845 | Screw | 1 |
| 27 | AZ9719360099 | Seal profile | 1 |
| 28 | Q40310 | Spring washer | 7 |
| 29 | Q340B10 | Nut | 7 |
| 30 | AZ9719360018 | Rubber sleeve | 2 |
| 31 | AZ9719360019 | Plug | 2 |
| 32 | AZ9719360010 | Joint | 2 |
| 33 | AZ9719360009 | Angle screwing | 2 |
| 35 | 190003559945 | Screwing | 1 |
| 36 | 1288 730061 | Gasket | 2 |
| 37 | Q351C12T15 | Nut | 2 |
| 38 | WG9100361003 | Angle screwing | 2 |
| 38/A | WG9100361001 | Screwing | 2 |
| 39 | 199000360477 | Gasket | 2 |
| 40 | 1406 070015 | Gasket | 8 |
| 41 | WG9000360292 | Gasket | 8 |
| 42 | Q351B16T15 | Nut | 3 |
| 43 | 190003559946 | Angle screwing | 3 |
| 44 | Q617B16 | Screw | 4 |
| 45 | AZ9719360010 | Angle nozzle | 2 |
| 45/A | WG9719360010 | Angle nozzle | 2 |
| 46 | Q150B0830 | Screw | 4 |
| 47 | Q340B08 | Nut | 1 |
| 48 | Q33208 | Nut | 4 |
| 49 | Q351C12T15 | Nut | 2 |
| 50 | 612600080213 | Valve | 1 |
