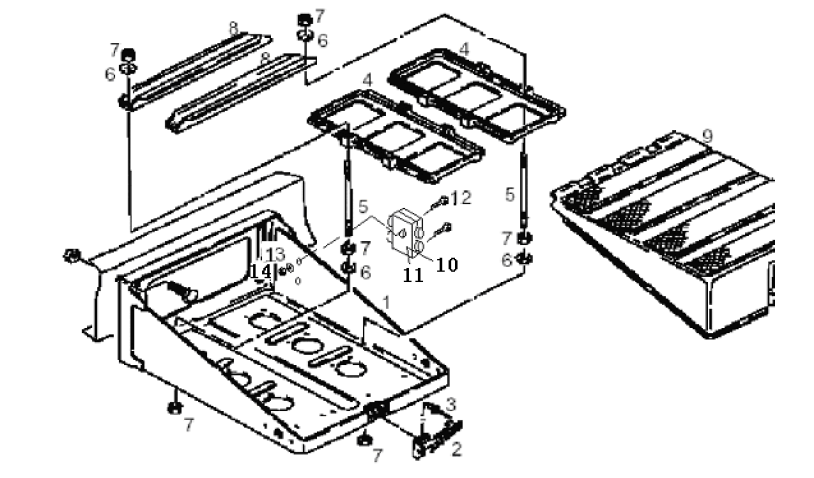

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
81.41860.5138 |
蓄电池箱体总成 |
Battery box assembly |
|
2 |
81.97106.6015 |
夹紧锁扣 |
Clamp lock |
|
3 |
06.24250.0213 |
拉铆螺母A-22 |
Blind nut A-22 |
|
4 |
81.41860.5170 |
框架 |
Retaining frame assembly |
|
5 |
81.95120.0164 |
拉杆 |
Threaded rod |
|
6 |
06.15013.0411 |
垫圈--A8.4*16*1.6 |
Washer |
|
|
|
-200HV-MAN183-B1 |
|
|
7 |
06.11064.2114 |
六角螺母M8-8-MAN183-B1 |
Hexagon nut |
|
8 |
81.41860.2458 |
U 型隔板 |
Channel Partition |
|
9 |
81.41860.0058 |
蓄电池箱盖 |
Cover |
|
10 |
DZ91189582037 |
保险丝盒 |
Fuse case |
|
11 |
DZ9100770147 |
10 A保险片 |
Fuse(10A) |
|
|
DZ91189582041 |
30 A保险片 |
Fuse(30A) |
|
|
DZ91189582042 |
10 0A保险片 |
Fuse(100A) |
|
12 |
Q2140520 |
十字槽盘头螺钉 |
Screw |
|
13 |
Q40105 |
平垫圈 |
Washer |
|
14 |
Q340B05 |
1型六角螺母 |
Nut |
