| NO. | Part No. | Chinese Name | Part Name |
| 1 | AZ1500090132 | 温度传感器 | Temperature sensor |
| 2 | 61200090163 | 电磁阀 | Solenoid valve |
| 3 | 61200090162 | 火焰预热电热塞 | Flamespark plug |
| 4 | AZ1500080154 | 燃油管总成 | Fuel pipe |
| 5 | AZ1500080159 | 燃油管总成 | Fuel pipe |
| 6 | 81560080212 | 空心螺栓 | Hollow screw |
| 7 | 90003962607 | 空心螺栓 | Hollow screw |
| 8 | 90003962621 | 空心螺栓 | Hollow screw |
| 9 | 609E110070 | 联接螺栓 | Connection screw |
| 10 | 79000770116 | 扁形插头 | Flat plug |
| 11 | 81560080327 | 管 | Pipe |
| 12 | 99014280016 | 衬套 | Sleeve |
| 13 | 99012360441 | 角形支架 | Angle bracket |
| 14 | 90003802415 | 六角头螺栓 | Hex．head screw |
| 15 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 16 | 90003930261 | 平垫圈 | Washer |
| 17 | 90003802307 | 六角头螺栓 | Hex.head screw |
| 18 | 90003559516 | 管接头用螺母 | Union nut |
| 19 | 90003559506 | 联接螺母 | Union nut |
| 20 | 90003559462 | 卡套式直通接头体 | Adaptor |
| 21 | 90003559561 | 卡套 | Taper bush |
| 22 | 90003559557 | 卡套 | Taper bush |
| 23 | 90003931082 | 弹簧垫圈 | Spring lock washer |
| 24 | 90003098029 | 密封垫圈 | Sealing ring |
| 25 | 90003098010 | 密封垫圈 | Sealing ring |
| 26 | 90003098010 | 密封垫圈 | Sealing ring |
| 27 | 90003098015 | 密封垫圈 | Sealing ring |
| 28 | 90003171697 | 塑料紧箍带 | Fastener |
| 29 | AZl500080155 | 燃油管 | Hose |
| NO. | Part No. | Chinese Name | Part Name |

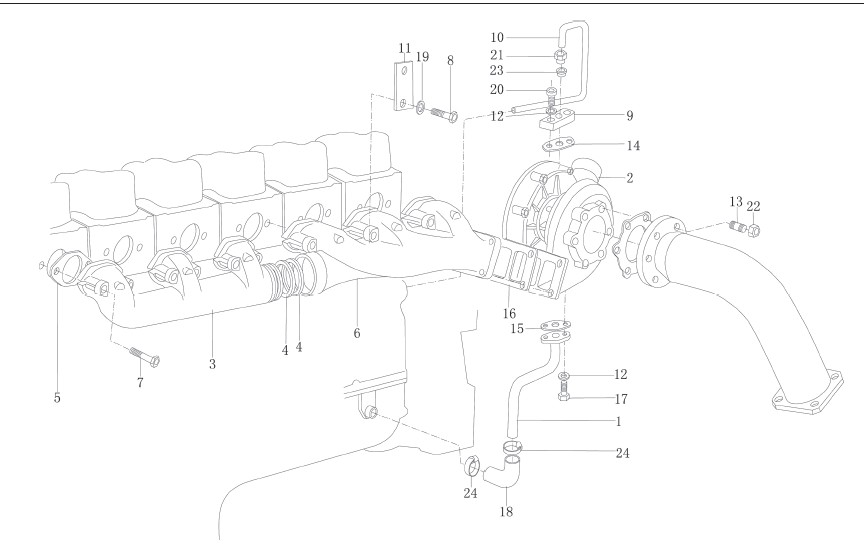

| 1 | 61800110043 | 回油管总成 | Oil pepe |
| 2 | 612600116924 | 废气涡轮增压器 | Turbocharger |
| 612600118924 | 废气涡轮增压器 | Turbocharger | |
| 3 | 612600111290 | 前排气歧管 | Exhaust manifold |
| 4 | 61260110162 | 排气管密封环 | Set of discs |
| 5 | 61560110242 | 排气管垫片 | Joint |
| 6 | 612600110855 | 后排气歧管 | Exhaust manifold |
| 7 | 61560110104 | 排气管紧固螺栓 | Screw |
| 8 | 61560110105 | 排气管紧固螺栓 | Screw |
| 9 | 81560110152 | 进油管法兰 | Joint |
| 10 | 61800110041 | 增压器进油管 | Pipe |
| 11 | 612600110871 | 支架 | Plate |
| 12 | 188250083 | 自锁垫圈 | Circlip |
| 13 | 81560110187 | 双头螺柱 | Stud |
| 14 | 609E110050 | 进油管垫片 | Joint |
| 15 | 61260110048 | 回油管法兰垫片 | Joint |
| 16 | 61560110210 | 增压器密封垫 | Joint |
| 17 | 61460070014 | 回油管螺栓 | Screw |
| 18 | 61560110225 | 增压器回油用成型软管 | Hose |
| 19 | 609090003 | 隔圈 | Washer |
| 20 | 90003862428 | 内六角圆柱头螺钉 | Screw |
| 21 | 90003559513 | 管接头螺母 | Ring |
| 22 | 90003888470 | 2型全金属六角锁紧螺母 | Nut |
| 23 | 90003559563 | 卡套 | Ring |
| 24 | 90003989340 | 软管卡箍 | Clamp |
