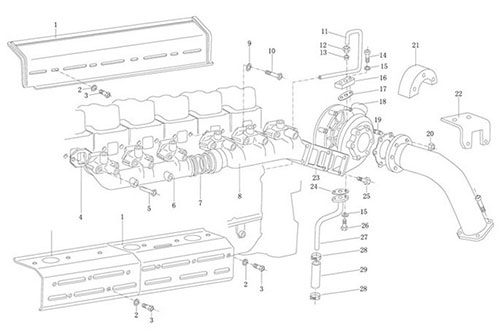

| NO. | Part No. | Part Name | Chinese name |
| 1 | 612600110856 | Front heat shield | 前隔热罩 |
| 1 | 612600110857 | Rear heat shield | 后隔热罩 |
| 2 | 90014320002 | Washer | 小垫圈 |
| 3 | 612600110961 | Bolt | 螺栓 |
| 4 | 61560110111 | Exhausf shim | 排气管垫片 |
| 5 | 61560110104 | Bolt | 排气管紧固螺栓 |
| 6 | 612600111290 | Pine | 前排气歧管 |
| 6 | 612600110673 | PiDe | 前排气歧管 |
| 7 | 612600110162 | Seal rang | 排气管密封环 |
| 8 | 612600110855 | Pipe | 后排气歧管 |
| 9 | 609070067 | Thrusl washer | 止推垫圈 |
| 10 | 61560110105 | Bolt | 排气管紧固螺栓 |
| 11 | 61560070001 | Intake pipe | 进油管 |
| 12 | 90003559513 | Nut | 管接头螺母 |
| 13 | 90003559563 | Clip | 卡套 |
| 14 | 90003862428 | bcrew | 内六角圆柱头螺钉 |
| 15 | 188250083 | Washer | 自锁垫圈 |
| 16 | 81560110152 | Flange | 进油管法兰 |
| 17 | 609E110050 | Shim | 进油管垫片 |
| 18 | 61560116227 | Turbocharger | 废气涡轮增压器 |
| 18 | 61560118227 | Turbocharger | 废气涡轮增压器 |
| 18 | 61560110227 | Turbocharger | 废气涡轮增压器 |
| 19 | 81560110187 | Stud | 双头螺柱 |
| 20 | 90003888470 | Nut | 2 型全金属六角锁紧螺母 |
| 21 | 612600110759 | Heat shield | 隔热罩 |
| 22 | 612600110871 | Bracket | 支架 |
| 23 | 61560110210 | Shim | 增压器垫片 |
| 24 | 612600110048 | Shim | 回油管法兰垫片 |
| 25 | 61560110241 | Bolt | 六角头螺栓 |
| 26 | 61460070014 | Bolt | 回油管螺栓 |
| 27 | 612600110361 | Oil pipe | 回油管 |
| 28 | 90003989340 | Clamp | 软管卡箍 |
| 29 | 61260007007l | Pipe | 增压器回油用软管 |
