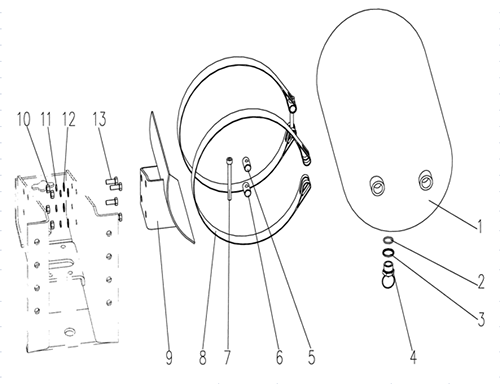

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9014362117 | Air reservior(30L) | 1 |
| 1/A | WG9000360705 | Air reservior(30L) | 1 |
| 2 | 1680 250092 | Gasket | 1 |
| 3 | WG9100360319 | Gasket | 1 |
| 4 | WG9000360115 | Drain valve | 1 |
| 5 | WG700550013 | Tension bolt | 2 |
| 6 | WG09 190017 | Tension bolt | 2 |
| 7 | Q218B0880 | Screw | 2 |
| 8 | WG9719360024 | Tension strap | 2 |
| 9 | AZ9718360005 | Support | 1 |
| 10 | Q340B08 | Nut | 4 |
| 11 | Q40308 | Spring washer | 4 |
| 12 | Q40108 | Washer | 4 |
| 13 | Q150B0822 | Screw | 4 |
