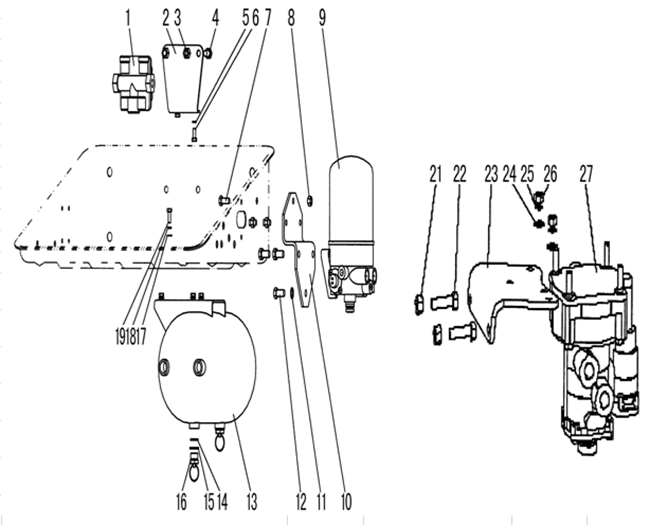

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9000360366 | 4-circuit protecting valve | 1 |
| 1/A | WG9000360523 | 4-circuit protecting valve | 1 |
| 2 | AZ9719360013 | Bracket for protection valve | 2 |
| 3 | Q33212 | Nut | 2 |
| 4 | Q150B1220 | Screw | 2 |
| 5 | Q40308 | Spring washer | 2 |
| 6 | Q150B0818 | Screw | 2 |
| 7 | Q150B1030 | Screw | 3 |
| 8 | Q33210 | Nut | 3 |
| 9 | WG9100368471 | Air dryer | 1 |
| 9/A | WG9000360521 | Air dryer | 1 |
| 10 | AZ9719360014 | Bracket for air dryer | 1 |
| 11 | Q41212 | Toothed washer | 3 |
| 12 | Q151C1225 | Screw | 3 |
| 12/A | Q151C1230 | Screw | 3 |
| 13 | WG9719360001 | Air reservior(5L+5L) | 1 |
| 13/A | WG9100360044 | Air reservior(5L) | 1 |
| 13/B | WG9100360707 | Air reservior(5L) | 1 |
| 14 | WG9100360319 | Gasket | 2 |
| 15 | 1680 250092 | Gasket | 2 |
| 16 | WG9000360115 | Drain valve | 1 |
| 17 | Q40108 | Washer | 4 |
| 18 | Q40308 | Spring washer | 4 |
| 19 | Q150B0820 | Screw | 4 |
| 21 | Q33210 | Nut | 2 |
| 22 | Q150B1035 | Screw | 2 |
| 23 | AZ9130360003 | Bracket for trailer control valve | 1 |
| 24 | Q40108 | Washer | 2 |
| 25 | Q40308 | Spring washer | 2 |
| 26 | Q340B08 | Nut | 2 |
| 34 | WG9000360180 | Trailer control valve | 1 |
| 34/A | WG9000360525 | Trailer control valve | 1 |
