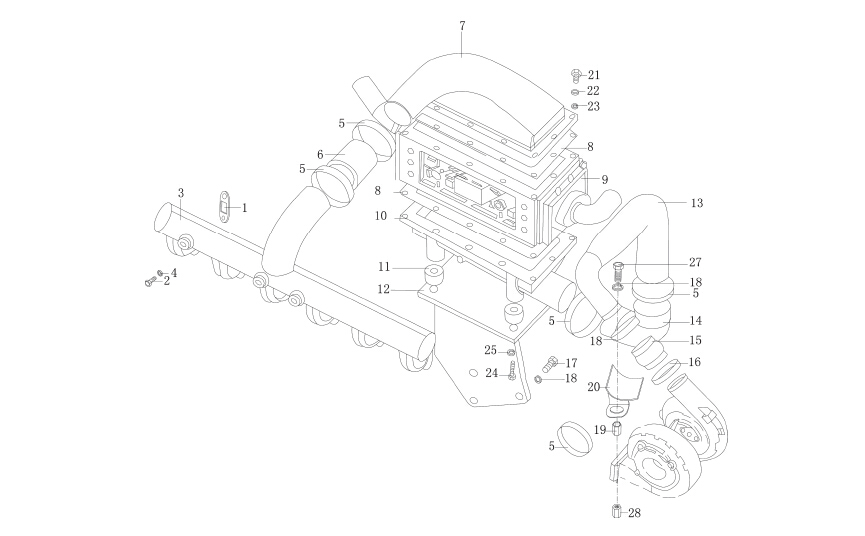

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 12272783 | 垫片 | CASKET |
| 2 | 1152105 | 六角头螺塞 | SCREW PLUG |
| 3 | 13023741 13024064 |
进气管 进气管 |
INTAKE MANIFOLD |
| 4 | 1118681 | 密封垫圈 | SEALING RING |
| 5 | 12151677 | 软管卡箍 | HOSE CLIP |
| 6 | 12200644 | 橡胶管 | HOSE |
| 7 | 13021507 | 中冷器出气盖 | AIR COOLER EXHAUST COVER |
| 8 | 13021545 | 垫片 | GASKET |
| 9 | 13024276 | 中冷器 | AIR COOLER |
| 10 | 13021502 | 中冷器进气盖 | AIR COOLER INTAKE COVER |
| 11 | 13021684 | 垫块 | SPACER BLOCK |
| 12 | 13021506 | 中冷器支架 | BRACKET |
| 13 | 13021508 | 增压进气管 | TUBE |
| 14 | 13021274 | 橡胶管 | HOSE |
| 15 | 1175634 | 增压器软管 | HOSE |
| 16 | 1133878 | 软管卡箍 | HOSE CLIP |
| 17 | 1152412 | 六角头螺栓 | HEXAGON BOLT |
| 18 | 13024222 | 弹簧垫圈 | SPRING LOCK WASHER |
| 19 | 13021277 | 套筒 | BUSH |
| 20 | 13021518 | 支架 | BRACKET |
| 21 | 1112331 | 六角头螺栓 | HEXAGON BOLT |
| 22 | 1132562 | 平垫圈 | PLAIN WASHER |
| 23 | 1177981 | 弹簧垫圈 | SPRING LOCK WASHER |
| 24 | 1152370 | 六角头螺栓 | HEXAGON BOLT |
| 25 | 1178366 | 弹簧垫圈 | SPRING LOCK WASHER |
| 26 | 1112278 | 六角头螺栓 | HEXAGON BOLT |
| 27 | 12159523 | 螺母 | NUT |
