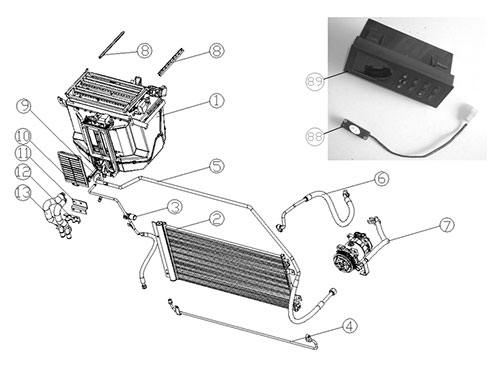

| NO | PART NO | QUANTITY | Designation | 名 称 |
| 1 | AZ1664820002 | 1 | HVAC | 空调机总成 |
| 1a | Q1460835 | 4 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 |
| 2 | WG1664820116/1 | 1 | Condenser | 中小马力发动机冷凝器总成 |
| 2a | Q150B0625 | 2 | Hex head bolt | 六角头螺栓 |
| 2b | Q150B0616 | 2 | Hex head bolt | 六角头螺栓 |
| 2c | Q40206 | 4 | Washer | 大垫圈 |
| 2d | Q40306 | 4 | Spring washer | 弹簧垫圈 |
| 2e | Q340B06 | 2 | Hexagon nut | I型六角螺母 |
| 3 | WG1664820104/1 | 1 | Pipe / condenser-evaporator | 冷-蒸软管驾驶室段(平地板) |
| 3a | Q40106 | 1 | Washer | 平垫圈 |
| 3b | Q40306 | 1 | Spring washer | 弹簧垫圈 |
| 3c | Q340B06 | 1 | Hexagon nut | I型六角螺母 |
| 4 | WG1664820112/1 | 1 | Pipe / condenser-evaporator | 冷-蒸软管冷凝器段(中小马力) |
| 4a | Q150B0825 | 1 | Hex head bolt | 六角头螺栓 |
| 4b | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 4c | Q340B06 | 1 | Hexagon nut | I型六角螺母 |
| 4d | Q1460625 | 1 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 |
| 5 | WG1664820105/1 | 1 | Pipe / evaporator-compressor | 蒸-压软管驾驶室段(平地板) |
| 5a | Q40106 | 1 | Washer | 平垫圈 |
| 5b | Q40306 | 1 | Spring washer | 弹簧垫圈 |
| 5c | Q340B06 | 1 | Hexagon nut | I型六角螺母 |
| 5d | Q2140625 | 1 | Flat head screw | 十字槽盘头螺钉 |
| 5e | Q40306 | 1 | Spring washer | 弹簧垫圈 |
| 6 | WG1664820117/1 | 1 | Pipe / compressor-condenser | 压-冷软管(平地板、10L机) |
| 6a | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 6b | Q340B06 | 1 | Hexagon nut | I型六角螺母 |
| 7 | WG1664820119/1 | 1 | Pipe / evaporator-compressor | 蒸-压软管车架部分(10L机) |
| 7a | Q1460625 | 1 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 |
| 7b | Q40106 | 1 | Washer | 平垫圈 |
| 7c | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 7d | Q340B06 | 1 | Hexagon nut | I型六角螺母 |
| 8 | AZ1664820082 | 2 | Duct holder | 风道压条 |
| 9 | WG1664820005 | 1 | Temperature sensor / outdoor | 室外温度传感器总成 |
| 10 | AZ1664820006 | 1 | Filter | 进风口网罩 |
| 10a | Q2140620 | 1 | Flat head screw | 十字槽盘头螺钉 |
| 11 | AZ1664820107 |
