A. Fault possible cause and fault treatment (gas): (1). Gas cylinder has no gas or hand valve of gas cylinder is not open. Fault treatment: add gas or turn on hand valve of gas cylinder. (2). High pressure solenoid valve has no electricity or is damaged. Fault treatment: turn on the ignition key and then the solenoid valve has ringing “thump” sound. The connector clip of high pressure solenoid val...

The permissible working temperature of fast gearbox shall be no more than 120℃. Gearbox can generate certain heat because of friction of moving member. The normal working temperature is about 38℃ higher than the ambient temperature. The heat is dissipated through gearbox housing. If heat dissipation is not normal, overheating will be caused. It is normal that vehicle gearbox is “too hot to touch” ...

The main cause for hot brake drum is that brake chamber does not return or return is too slow. Brake shoe and brake drum have no clearance, which can also make brake drum hot. Please inspect and adjust the clearance and inspect why the chamber does not return. When the brake chamber does not return, please inspect gas circuit and whether the brake camshaft is tight. When the return spring of brake...

There are two factors for heavy direction: one is that steering system mechanical part of front axle and the other is steering hydraulic assist system. Steering column is lack of oil, which is the main cause for heavy steering caused by mechanical part. The steering column is not maintained for a long term, lubricating grease is not filled in the steering shaft, therefore, master pin and bushing i...

We we should do if "Brake cannot work"? The brake cannot work and the effect is poor, which may caused by gas circuit system. Brake shoe’s friction plate and brake drum have problems. The touch area between brake shot plate and brake drum shall be larger than 70% of the total area. At the same time, the friction plate shall be clean, dry and have no greasy dirt and moist. In order to guarantee the...

A. Add wine or alcohol in the cleaning agent to reduce condensation point. It is not easy to freeze in winter. B. Change water pipe into rubber hose so that it cannot be hard and fractured in low temperature. C. Remove the water pipe directly and please pay attention to clean to keep visual line when parking.

What we do if the battery energy is not enough? It is quite a common issue we met during the daily use, in fact, we don't need to be anxious about this matter, here is the way to solove this problem. If the battery energy is not enough when igniting in the morning and it is difficult to pull the starter, a temporary method is: pour hot water on the battery, close all electric equipment and cl...

For WEICHAI starter, the basic informaiton is as following: Construction machinery starter, basically 10 tooth starter 1 612600090287 BOSCH   2 612600090130A WELLS 3 612600090117 VALEO 4 612600090340 VALEO 5 61500090030 9 tooth 6 61500090029 11 tooth       Truck starter: 10 tooth   612600090210       612600090210B Import part       New truck m...

  # DESCRIPTION: PART NO SIZE VEHICLE 1 CLUTCH DISC WG9619160001 420X240X44.5 HUANGHE, SWZ 2009,2010 CLUTCH PLATE BZ1560161093 420 HOVA 60 MINING TRUCK 　 　 　 　 　 2 CLUTCH DISC AZ9114160020 430X230X52.5 STEYR KING, HOWO, HOKA CLUTCH PLATE AZ9114160010 430 HOYUN RELEASE BEARING AZ9114160030 　 　 　 　 　 　 　 3 CLUTCH DISC AZ9725160300 430X240X52.5 HOWO NEW MODEL, SWZ NEW MODEL CLUTCH PLATE WG972516...

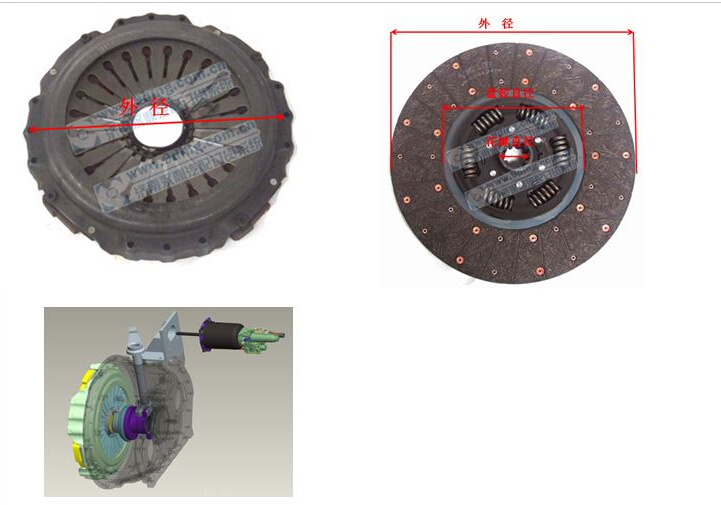

How many kinds of clutch discs used on HOWO?   TO LET YOU KNOW CLUTCH DISCS OF SINOTRUK  SINOTRUK have many different kinds of trucks, sometimes the users are really confused about the clutch disc about HOWO trucks, because it have many different types, now I would like to introduce all these types to you, to make it easier.   First type: clutch disc of diameter 420mm. The comm...

How about the Southeast Asia, Middle-East & African market? First, The heavy truck made by SINOTRUK ranked relatively higher market share in the Southeast Asia, middle-east &African market. Thanks to its scale effect, specialized markets have become more mature. Next, One of the reasons why TOP LEAD made more than 500 truck models wearing spare parts list is that we believe every country h...

Compared with other company, What is the advantage of TOP LEAD? "QUALITY":We can ensure that all our products are from original factory with reliable quality &reasonable prices. We supply all series of accessories, and our production inventory is always adequate. Together with the OEM service, which has brought more benefits and convenience to our customers and cooperators, and the support of ...

How to purchase HOWO spare parts correctly? For most foreign customers, the most headache thing is to book spare parts for their trucks, especially China trucks. Taking SINOTRUK for example, with the updating for HOWO trucks year by year, there are many old type spare parts are instead by new types, but the catalog which we use is always cannot keep same step with new trucks. That is why some cust...
