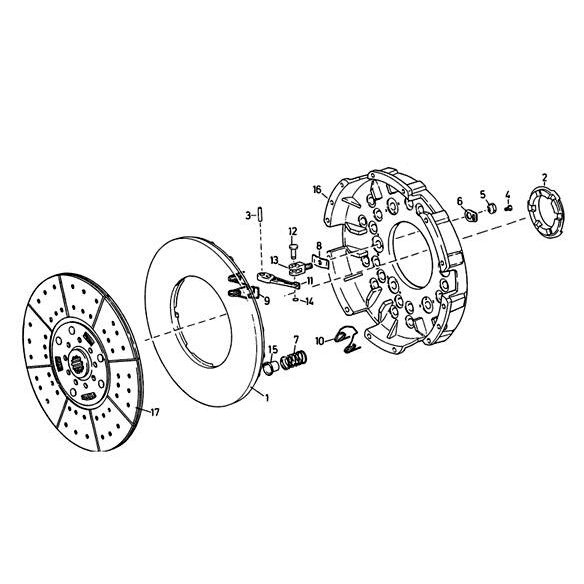

Φ
|
|
|
|
|
|
|
|
|
*420 |
420B |
|||||
|
- |
BZ1560161090 |
1 |
√ |
|
Platen C |
|
|
- |
BZ1560160013 |
1 |
|
√ |
Platen C |
|
|
1 |
BZ1560161093 |
1 |
√ |
√ |
Platen |
|
|
2 |
BZ1560161212 |
1 |
√ |
√ |
Thrust collar |
|
|
3 |
BZ1560161100 |
6 |
√ |
√ |
Plug |
|
|
4 |
BZ1560161119 |
6 |
√ |
√ |
Hex screw |
|
|
5 |
BZ1560161112 |
6 |
√ |
√ |
Nut |
|
|
6 |
BZ1560161113 |
6 |
√ |
√ |
Locker |
|
|
7 |
BZ1560161114 |
27 |
|
√ |
Platen spring |
|
|
7a |
BZ1560161116 |
9 |
|
√ |
Platen spring |
|
|
7 |
BZ1560161115 |
12 |
√ |
|
Platen spring |
|
|
7a |
BZ1560161116 |
24 |
√ |
|
Platen spring |
|
|
8 |
BZ1560161097 |
6 |
√ |
√ |
Spring disc |
|
|
9 |
BZ1560161081 |
3 |
√ |
√ |
Spring C |
|
|
10 |
BZ1560161084 |
3 |
√ |
√ |
Release lever spring |
|
|
11 |
BZ1560161096 |
6 |
√ |
√ |
Release lever C |
|
|
12 |
BZ1560161114 |
6 |
√ |
√ |
Connecting pin |
|
|
13 |
BZ1560161108 |
6 |
√ |
√ |
Adjustment fork |
|
|
14 |
Q43710 |
12 |
√ |
√ |
Washer |
|
|
15 |
BZ1560161117 |
6 |
√ |
√ |
Spring holder |
|
next:
