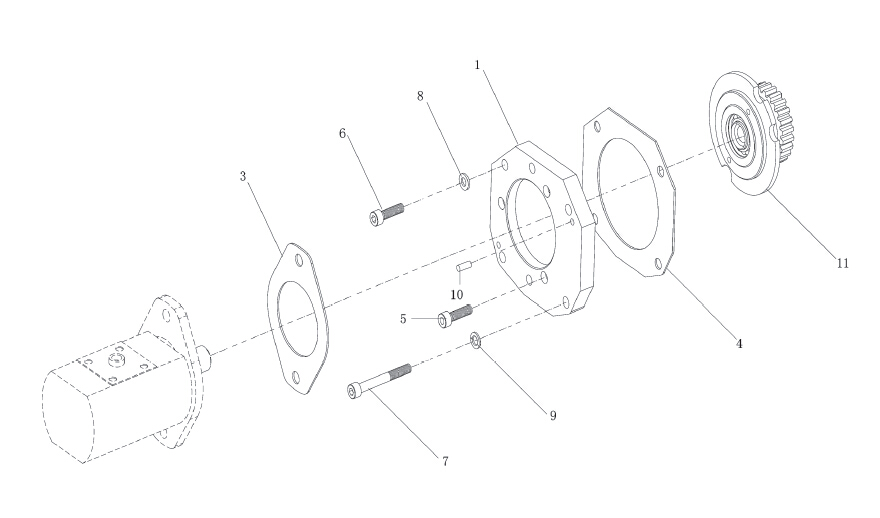

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 13020204 | 液压泵支撑板 | SUPPORT BOARD |
| 3 | 12159835 | 垫片 | GASKET |
| 4 | 12189678 | 垫片 | GASKET |
| 5 | 1151488 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 1110584 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 6 | 1110578 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 7 | 13021442 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 8 | 1118645 | 密封垫圈 | SEALING RING |
| 9 | 1177981 | 弹簧垫圈 | SPRING LOCK WASHER |
| 10 | 1105130 | 圆柱销 | PARALLEL PIN |
| 11 | 13020870 | 液压泵齿轮组件 | HYDRAULIC PUMP GEAR ASSEMBLY |
